台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振

台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振,台湾加高晶振,HSX221SA进口晶振,2520晶振,X2B038400BA1H-U晶振,频率32MHz,负载10pf,工作温度-20~70°C,频率稳定性10ppm,耐热性晶振,高稳定性晶振,6G无线应用晶振,射频应用晶振,物料网应用晶振,RFID应用晶振.

台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振特点 :

■微型超薄贴片产品尺寸（2.5×2.0× 0.5 max)
■精度高，可靠性好，耐热性好
■射频应用、无线模块设备、RFID应用和其他消费类产品的最佳解决方案

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

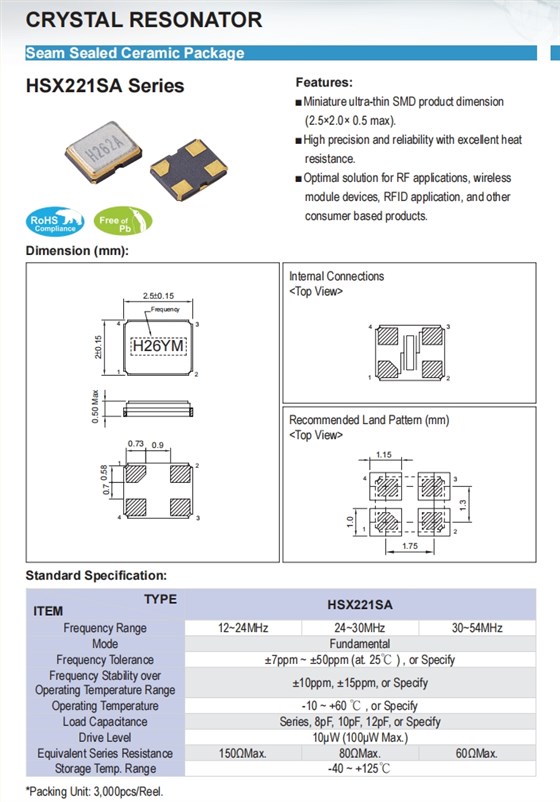

台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振参数

项目	符号	HSX221S
频率	f0	38.4MHz
振动模式		Fundamental
频率公差	△f/f0	±10ppm
温度稳定性	TC	±10ppm
负载电容	CL	10pf
工作温度	TOPR	－20℃～＋70℃
保存温度	TSTR	－40℃～＋125℃
串联阻力	R1	60Ω Max.
驱动级别	DL	100μW Max

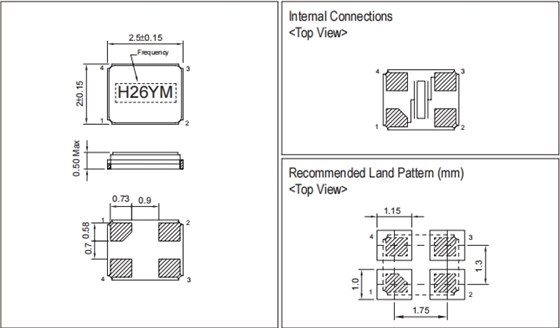

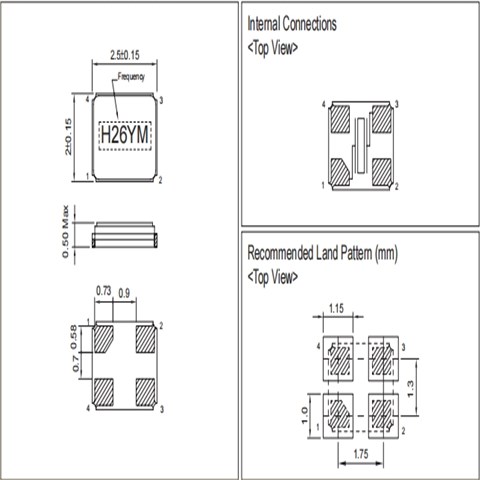

台湾加高晶振,HSX221SA石英晶体,X2B038400BA1H-U,6G无线应用晶振尺寸图

原厂编码	制造厂家	型号	频率	负载	频率容差	频率稳定性	工作温度	尺寸
X2B02863ADC1H-W	HELE晶振	HSX221SA	28.636360MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B010000ADC1H-W	HELE晶振	HSX221SA	10MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B011000ADC1H-W	HELE晶振	HSX221SA	11MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B012000ADC1H-W	HELE晶振	HSX221SA	12MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B013000ADC1H-W	HELE晶振	HSX221SA	13MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B014000ADC1H-W	HELE晶振	HSX221SA	14MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B015000ADC1H-W	HELE晶振	HSX221SA	15MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B016000ADC1H-W	HELE晶振	HSX221SA	16MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B017000ADC1H-W	HELE晶振	HSX221SA	17MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B018000ADC1H-W	HELE晶振	HSX221SA	18MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B019000ADC1H-W	HELE晶振	HSX221SA	19MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B020000ADC1H-W	HELE晶振	HSX221SA	20MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B021000ADC1H-W	HELE晶振	HSX221SA	21MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B022000ADC1H-W	HELE晶振	HSX221SA	22MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B023000ADC1H-W	HELE晶振	HSX221SA	23MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B024000ADC1H-W	HELE晶振	HSX221SA	24MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B025000ADC1H-W	HELE晶振	HSX221SA	25MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B026000ADC1H-W	HELE晶振	HSX221SA	26MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B027000ADC1H-W	HELE晶振	HSX221SA	27MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B028000ADC1H-W	HELE晶振	HSX221SA	28MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B029000ADC1H-W	HELE晶振	HSX221SA	29MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B030000ADC1H-W	HELE晶振	HSX221SA	30MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B031000ADC1H-W	HELE晶振	HSX221SA	31MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B032000ADC1H-W	HELE晶振	HSX221SA	32MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B033000ADC1H-W	HELE晶振	HSX221SA	33MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B034000ADC1H-W	HELE晶振	HSX221SA	34MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B035000ADC1H-W	HELE晶振	HSX221SA	35MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B036000ADC1H-W	HELE晶振	HSX221SA	36MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B037000ADC1H-W	HELE晶振	HSX221SA	37MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B038000ADC1H-W	HELE晶振	HSX221SA	38MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B039000ADC1H-W	HELE晶振	HSX221SA	39MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B040000ADC1H-W	HELE晶振	HSX221SA	40MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B038400BA1H-U	HELE晶振	HSX221SA	38.4MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B016000BA1H-U	HELE晶振	HSX221SA	16MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B017000BA1H-U	HELE晶振	HSX221SA	17MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B018000BA1H-U	HELE晶振	HSX221SA	18MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B019000BA1H-U	HELE晶振	HSX221SA	19MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B020000BA1H-U	HELE晶振	HSX221SA	20MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B021000BA1H-U	HELE晶振	HSX221SA	21MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B022000BA1H-U	HELE晶振	HSX221SA	22MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B023000BA1H-U	HELE晶振	HSX221SA	23MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B024000BA1H-U	HELE晶振	HSX221SA	24MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B025000BA1H-U	HELE晶振	HSX221SA	25MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B026000BA1H-U	HELE晶振	HSX221SA	26MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B027000BA1H-U	HELE晶振	HSX221SA	27MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B028000BA1H-U	HELE晶振	HSX221SA	28MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B029000BA1H-U	HELE晶振	HSX221SA	29MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B030000BA1H-U	HELE晶振	HSX221SA	30MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B031000BA1H-U	HELE晶振	HSX221SA	31MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B032000BA1H-U	HELE晶振	HSX221SA	32MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B033000BA1H-U	HELE晶振	HSX221SA	33MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B034000BA1H-U	HELE晶振	HSX221SA	34MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B035000BA1H-U	HELE晶振	HSX221SA	35MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B036000BA1H-U	HELE晶振	HSX221SA	36MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B037000BA1H-U	HELE晶振	HSX221SA	37MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B038000BA1H-U	HELE晶振	HSX221SA	38MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B039000BA1H-U	HELE晶振	HSX221SA	39MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B040000BA1H-U	HELE晶振	HSX221SA	40MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B041000BA1H-U	HELE晶振	HSX221SA	41MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B042000BA1H-U	HELE晶振	HSX221SA	42MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B043000BA1H-U	HELE晶振	HSX221SA	43MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B044000BA1H-U	HELE晶振	HSX221SA	44MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B045000BA1H-U	HELE晶振	HSX221SA	45MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B046000BA1H-U	HELE晶振	HSX221SA	46MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
