CTS

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振,CTS晶振,欧美进口晶振,ATSSMGL石英贴片晶振,GL270F23IDT晶振,无源晶振,频率27MHz,负载18pF,频率稳定性30ppm,工作温度-40~85°C,高稳定性晶振,低成本晶振,6G网络应用晶振,通讯设备晶振,数码相机晶振,工业设备晶振.

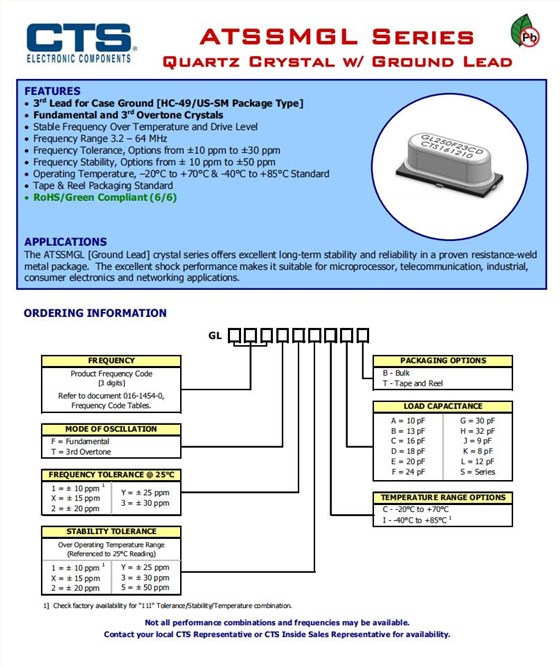

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振特征

•外壳接地的第三根导线[HC-49/US-SM封装类型]

•基本和第三泛音晶体

•稳定的频率超过温度和驱动电平

•频率范围3.2 - 64MHz

•频率公差，从±10ppm到±30ppm的选项

•频率稳定性，从±10ppm到±50ppm的选项

•工作温度，-20°C至+70°C和-40°C至+85°C标准

•胶带和卷轴包装可用

•符合RoHS/绿色标准[6/6]

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

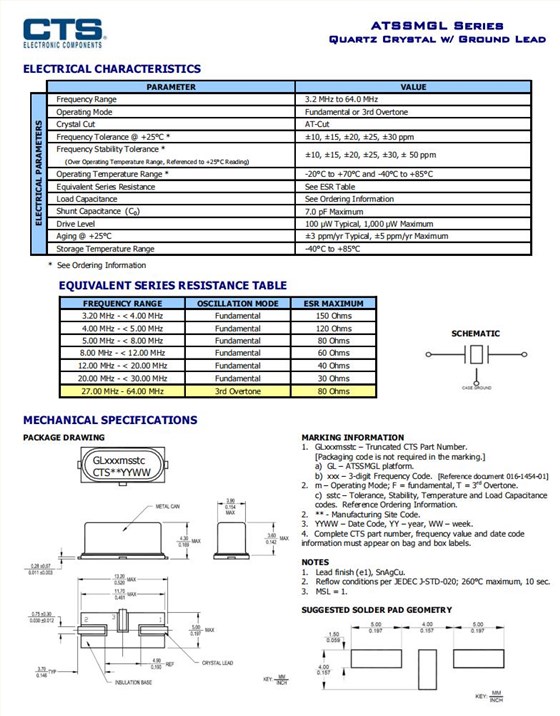

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振参数表

项目 数值
频率 27MHz
操作模式 Fundamental
晶体切割 AT-Cut
工作温度 -40°Cto+85°C
保存温度 -40°Cto+85°C
频率公差@ +25°C ±20PPM

工作温度范围内的频率稳定性( ref. to

+25°C)

±30PPM
等效串联电阻(R1) 30Ω
并联电容(C0) 7.0pF Maximum
负载电容 (CL) 18pF
激励功率 1000μW Max
老化@ +25°C ±3ppm/yr Typical

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

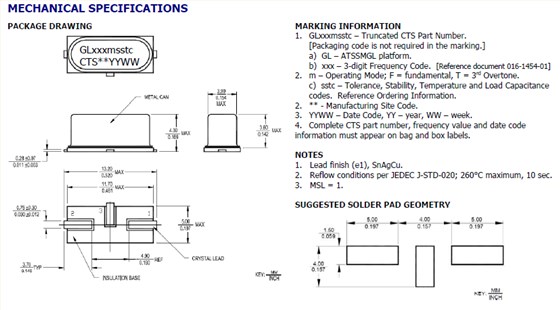

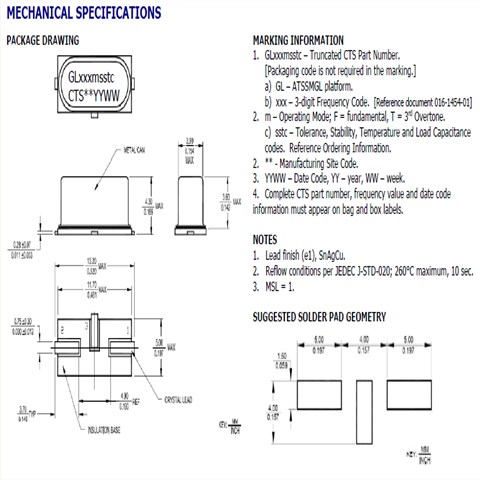

CTS晶振,ATSSMGL晶振,GL270F23IDT,6G网络应用晶振尺寸图

ATSSMGL 12.3-5

ATSSMGL

ATSSMGL-1

原厂编码 生产厂家 型号 频率 频率稳定度 频率偏差 负载电容 ESR电阻 工作温度
GL240F23CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F23CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F33CDT CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F33CET CTS 晶振 ATSSMGL 24MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35CDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL240F35CET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL240F35IDT CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL240F35IET CTS 晶振 ATSSMGL 24MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL24CF23CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF23CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF33CDT CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF33CET CTS 晶振 ATSSMGL 24.576MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35CDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL24CF35CET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL24CF35IDT CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL24CF35IET CTS 晶振 ATSSMGL 24.576MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL250F23CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F23CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F33CDT CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F33CET CTS 晶振 ATSSMGL 25MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35CDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL250F35CET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL250F35IDT CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL250F35IET CTS 晶振 ATSSMGL 25MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL270F23CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F23CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±20ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F33CDT CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F33CET CTS 晶振 ATSSMGL 27MHz ±30ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35CDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -20°C ~ 70°C
GL270F35CET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -20°C ~ 70°C
GL270F35IDT CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 18pF 30 Ohm -40°C ~ 85°C
GL270F35IET CTS 晶振 ATSSMGL 27MHz ±50ppm ±30ppm 20pF 30 Ohm -40°C ~ 85°C
GL042F23CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F23CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F33CDT CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F33CET CTS 晶振 ATSSMGL 4.096MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35CDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL042F35CET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL042F35IDT CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL042F35IET CTS 晶振 ATSSMGL 4.096MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL044F23CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F23CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F33CDT CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F33CET CTS 晶振 ATSSMGL 4.433619MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35CDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL044F35CET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL044F35IDT CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL044F35IET CTS 晶振 ATSSMGL 4.433619MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL045F23CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F23CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F33CDT CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F33CET CTS 晶振 ATSSMGL 4.5MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35CDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL045F35CET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL045F35IDT CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL045F35IET CTS 晶振 ATSSMGL 4.5MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL049F23CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F23CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±20ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F33CDT CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F33CET CTS 晶振 ATSSMGL 4.9152MHz ±30ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35CDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -20°C ~ 70°C
GL049F35CET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -20°C ~ 70°C
GL049F35IDT CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 18pF 120 Ohm -40°C ~ 85°C
GL049F35IET CTS 晶振 ATSSMGL 4.9152MHz ±50ppm ±30ppm 20pF 120 Ohm -40°C ~ 85°C
GL050F23CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F23CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F33CDT CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F33CET CTS 晶振 ATSSMGL 5MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35CDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL050F35CET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL050F35IDT CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL050F35IET CTS 晶振 ATSSMGL 5MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL060F23CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F23CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F33CDT CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F33CET CTS 晶振 ATSSMGL 6MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35CDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL060F35CET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL060F35IDT CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL060F35IET CTS 晶振 ATSSMGL 6MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL061F23CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F23CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F33CDT CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F33CET CTS 晶振 ATSSMGL 6.144MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35CDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL061F35CET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL061F35IDT CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL061F35IET CTS 晶振 ATSSMGL 6.144MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL073F23CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F23CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±20ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F33CDT CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F33CET CTS 晶振 ATSSMGL 7.3728MHz ±30ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35CDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -20°C ~ 70°C
GL073F35CET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -20°C ~ 70°C
GL073F35IDT CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 18pF 80 Ohm -40°C ~ 85°C
GL073F35IET CTS 晶振 ATSSMGL 7.3728MHz ±50ppm ±30ppm 20pF 80 Ohm -40°C ~ 85°C
GL080F23CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F23CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F33CDT CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F33CET CTS 晶振 ATSSMGL 8MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35CDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL080F35CET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL080F35IDT CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL080F35IET CTS 晶振 ATSSMGL 8MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL092F23CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F23CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F33CDT CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F33CET CTS 晶振 ATSSMGL 9.216MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35CDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL092F35CET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL092F35IDT CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL092F35IET CTS 晶振 ATSSMGL 9.216MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL098F23CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F23CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F33CDT CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F33CET CTS 晶振 ATSSMGL 9.8304MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35CDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL098F35CET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL098F35IDT CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL098F35IET CTS 晶振 ATSSMGL 9.8304MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL100F23CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F23CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F33CDT CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F33CET CTS 晶振 ATSSMGL 10MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35CDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL100F35CET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL100F35IDT CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL100F35IET CTS 晶振 ATSSMGL 10MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL102F23CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F23CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F33CDT CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F33CET CTS 晶振 ATSSMGL 10.24MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35CDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL102F35CET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL102F35IDT CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL102F35IET CTS 晶振 ATSSMGL 10.24MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL111F23CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F23CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±20ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F33CDT CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F33CET CTS 晶振 ATSSMGL 11.0592MHz ±30ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35CDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -20°C ~ 70°C
GL111F35CET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -20°C ~ 70°C
GL111F35IDT CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 18pF 60 Ohm -40°C ~ 85°C
GL111F35IET CTS 晶振 ATSSMGL 11.0592MHz ±50ppm ±30ppm 20pF 60 Ohm -40°C ~ 85°C
GL120F23CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F23CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F33CDT CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F33CET CTS 晶振 ATSSMGL 12MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35CDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL120F35CET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL120F35IDT CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL120F35IET CTS 晶振 ATSSMGL 12MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL122F23CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F23CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F33CDT CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F33CET CTS 晶振 ATSSMGL 12.288MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35CDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL122F35CET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL122F35IDT CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL122F35IET CTS 晶振 ATSSMGL 12.288MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL130F23CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F23CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F33CDT CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F33CET CTS 晶振 ATSSMGL 13MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35CDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL130F35CET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL130F35IDT CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL130F35IET CTS 晶振 ATSSMGL 13MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL135F23CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F23CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F33CDT CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F33CET CTS 晶振 ATSSMGL 13.5MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35CDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL135F35CET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL135F35IDT CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL135F35IET CTS 晶振 ATSSMGL 13.5MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL143F23CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F23CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F33CDT CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F33CET CTS 晶振 ATSSMGL 14.31818MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35CDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL143F35CET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL143F35IDT CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 18pF 40 Ohm -40°C ~ 85°C
GL143F35IET CTS 晶振 ATSSMGL 14.31818MHz ±50ppm ±30ppm 20pF 40 Ohm -40°C ~ 85°C
GL147F23CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F23CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±20ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F33CDT CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F33CET CTS 晶振 ATSSMGL 14.7456MHz ±30ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C
GL147F35CDT CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 18pF 40 Ohm -20°C ~ 70°C
GL147F35CET CTS 晶振 ATSSMGL 14.7456MHz ±50ppm ±30ppm 20pF 40 Ohm -20°C ~ 70°C







上一页 余下全文

1/5

关于“CTS晶振,欧美进口晶振,ATSSMGL石英贴片晶振,GL270F23IDT晶振,无源晶振,高稳定性晶振,低成本晶振,6G网络应用晶振,通讯设备晶振,数码相机晶振,工业设备晶振.”的相关产品

KDS晶振,贴片晶振,DST1610AL晶振KDS晶振,贴片晶振,DST1610AL晶振奥斯利康通讯设备晶振,HC49USM-BA1F12- 24.000 MHz环保无铅晶振奥斯利康通讯设备晶振,HC49USM-BA1F12- 24.000 MHz环保无铅晶振

Oscilent美国进口晶振,151-7.3728M-SR-W-TR智能机器人晶振,151无源插件晶振Oscilent美国进口晶振,151-7.3728M-SR-W-TR智能机器人晶振,151无源插件晶振奥斯康利美国高品质晶振,276环保晶振,276-16.0M-30-L-TR网络终端晶振奥斯康利美国高品质晶振,276环保晶振,276-16.0M-30-L-TR网络终端晶振

Oscilent耐高温晶振,278高品质晶振,278-24.0M-20-W-TR汽车空调系统晶振Oscilent耐高温晶振,278高品质晶振,278-24.0M-20-W-TR汽车空调系统晶振NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振NKG车载多媒体晶振,S2SM进口晶振,S2SM18.0000F16M23-EXT超小型晶振

ELS13-32.768kHz-T,AEL石英晶体,仪表设备晶振,7015mm谐振器ELS13-32.768kHz-T,AEL石英晶体,仪表设备晶振,7015mm谐振器ELS25-32.768kHz-6-2-T,8038mm晶体,AEL时钟晶振,陶瓷晶振ELS25-32.768kHz-6-2-T,8038mm晶体,AEL时钟晶振,陶瓷晶振

CSM1Z-A5B2C5-50-20.0D18,Cardinal椭圆形晶振,机顶盒应用晶振CSM1Z-A5B2C5-50-20.0D18,Cardinal椭圆形晶振,机顶盒应用晶振CX532Z-A2B3C5-70-27.0D18,5032mm谐振器,Cardinal安防设备晶振CX532Z-A2B3C5-70-27.0D18,5032mm谐振器,Cardinal安防设备晶振

热点推荐

金洛鑫电子提供海内外各大品牌5G基站用石英晶振产品和方案Silicon晶振550CD74M2500DGR光学模块应用VCXO振荡器IQXO-406-25超小型时钟振荡器提供小型化和高速运行北斗定位专用晶振CO4305-25.000-EXT-T-TR时钟振荡器蓝牙SOC和模块专用晶振EFR32BG27C320F768GJ39-AR

返回头部
