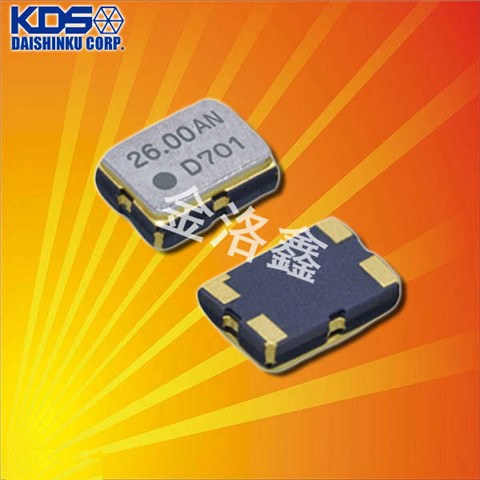

1XTW36864MAA,TCXO温度补偿晶振,DSB321SDN晶振
1XTW36864MAA是一款搭载专业TCXO(温度补偿晶体振荡器)技术的高性能晶振,核心优势在于通过内置温度补偿电路,实时抵消环境温度变化对频率输出的影响.相较于普通晶振,其频率稳定度提升显著,即便在-40℃至85℃的宽温范围内,频率漂移仍能控制在极低水平(通常可达±0.1ppm级别),完美适配对频率精度要求严苛的场景.同时,该晶振集成DSB321SDN相关特性,在封装稳定性与信号纯净度上进一步优化,能为通信基站,卫星导航设备,精密测试仪器等关键设备提供持续,精准的时钟信号,保障设备在复杂温度环境下的可靠运行.
1XTW36864MAA,TCXO温度补偿晶振,DSB321SDN晶振
| 原厂型号Originalmodel： |
          1XTW36864MAA
|
品牌brand： |
                             KDS
|
| Manufacturer品牌 |
 日本KDS晶振
|
OperatingTemperature温度 | -40℃ ~ 85℃ |
| Series型号 |

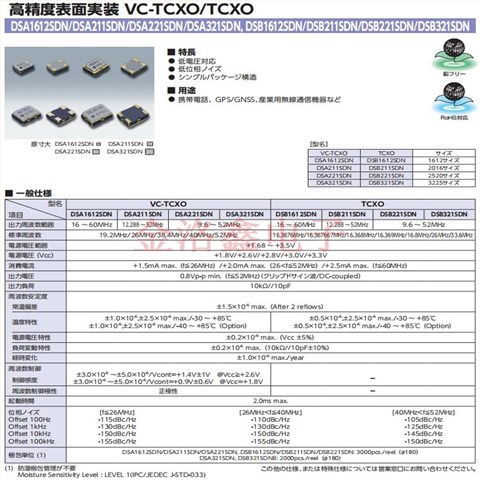

   DSB321SDN
|
Current-Supply(Max) | - |
| Type类型 | TCXO | PackageHeight高度 | 0.45mm |
| Frequency频率 |
  36.864MHz
|
Termination脚位 |
 4-pad
|
| 输出方式Output： | CMOS | PackageType封装类型 | 4-SMD |
| Voltage-Supply电压 | 3V | Packaging包装 | TapeandReel |
| FrequencyStability频率稳定度 |
      ±1.5ppm
|
安装方式Installation： | Surfacemount |
| Size/Dimension尺寸 | 3225mm | 最小包装数MPQ： | 3000 |
1XTW36864MAA,TCXO温度补偿晶振,DSB321SDN晶振
1XTW36864MAA,TCXO温度补偿晶振,DSB321SDN晶振
| KDS晶振 | 1TJH125DR1A0004 | DST1610A | 1610 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDJ1AI00S | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF090DP1AI007 | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AI008 | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768KHZ | 9PF | 20PPM |
| KDS晶振 | 1TJF080DP1AA00K | DST310S | 3215 | 32.768KHZ | 8PF | 20PPM |
| KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TJF0SPDN1A000B | DST310S | 3215 | 32.768KHZ | 10.0PF | 20PPM |
| KDS晶振 | 1TD125DGNS003 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD125DHNS002 | DT-26 | 206 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768KHZ | 6.0PF | 20PPM |
| KDS晶振 | 1TD125BHNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768KHZ | 7.5PF | 10PPM |
| KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768KHZ | 12.5PF | 10PPM |
| KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768KHZ | 10.0PF | -6/+2PPM |
| KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768KHZ | 12.5PF | 30/40P |
| KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768KHZ | 12.5PF | 20PPM |
| KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768KHZ | 12.5PF | 1000PPM |
| KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM |
| KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768KHZ | 12.5PF | +12/+28PPM |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000MHZ | 10PF | 10PPM |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6MHZ | 10PF | 30PPM |
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332MHZ | 12PF | 20PPM |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000MHZ | 20PF | 30PPM |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000MHZ | 10PF | 20PPM |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000MHZ | 11PF | 12PPM |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000MHZ | 10PF | 30PPM |
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000MHZ | 15PF | 15PPM |
| KDS晶振 | 1XSE098304AR2 | DSO321SR | 3225 | 98.304MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AJ100005B | SMD-49 | 11*4.6 | 10.000MHZ | 12PF | 50PPM |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000MHZ | 7PF | 10PPM |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 50PPM |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000MHZ | 16PF | 30PPM |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576MHZ | 18PF | 30PPM |
| KDS晶振 | ZC08759 | DSO211AH | 2016 | 25.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1AR270002GA | SMD-49 | 11*4.6 | 27.000MHZ | 12.9PF | 20PPM |
| KDS晶振 | 1AR304002A | SMD-49 | 11*4.6 | 30.400MHZ | 12PF | 50ppm |
| KDS晶振 | 1XXD16367MAA | DSB211SDN | 2016 | 16.367MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12467 | DSA211SDN | 2016 | 16.32MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1XXB16367MAA | DSB221SDN | 2520 | 16.367MHZ | 2.8V | 1.5ppm |
| KDS晶振 | 1XXB16369JFA | DSB221SDN | 2520 | 16.369MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC09382 | DSA535SG | 5032 | 18.432MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC12456 | DSB211SDN | 2016 | 16.320MHZ | 3.3V | 1.5ppm |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000MHZ | 12PF | 15ppm |
| KDS晶振 | ZC12965 | DSA321SDN | 3225 | 23.04MHZ | 3.3V | 1.5ppm |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000MHZ | 10PF | 30ppm |
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000MHZ | 9PF | 10ppm |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000MHZ | 8PF | 10ppm |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000MHZ | 10PF | 20ppm |
| KDS晶振 | 1XSE009600AV | DSO321SV | 3225 | 9.6MHZ | 3.3V | 100ppm |
| KDS晶振 | 1XSE012000AR58 | DSO321SR | 3225 | 12.000MHZ | 3.3V | 50ppm |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000MHZ | 7PF | 20PPM |
