数字视频专用HCMOS时钟振荡器CE3291-33.333

2023-05-25 10:26:39

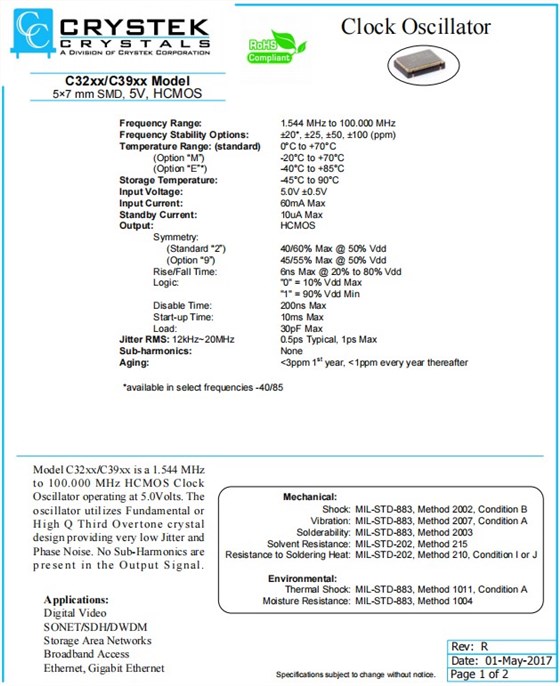

美国Crystek瑞斯克晶振C32xx系列,C3291晶振是一个小体积晶振尺寸7.0x5.0mm四脚贴片晶振,有源晶振,石英晶振,石英晶体振荡器,SMD晶振,频率范围为:1.544MHz至100.000MHz的HCMOS时钟振荡器,工作电压5.0V。该振荡器利用基本或高Q第三泛音晶体设计,该石英晶振提供非常低的抖动和相位噪声。输出信号中没有子谐波。应用范围:数字视频,声波仪/SDH/DWDM,存储区域网络,宽带接入,以太网、千兆以太网数字视频专用HCMOS时钟振荡器CE3291-33.333

C3290,C32xx

原厂代码 品牌 型号 类型 频率 频率稳定度 工作温度
C3291-1.544 Crystek晶振 C3291 XO (Standard) 1.544MHz ±25ppm 0°C ~ 70°C
C3291-1.843200 Crystek晶振 C3291 XO (Standard) 1.8432MHz ±25ppm 0°C ~ 70°C
C3291-10.000 Crystek晶振 C3291 XO (Standard) 10MHz ±25ppm 0°C ~ 70°C
C3291-12.000 Crystek晶振 C3291 XO (Standard) 12MHz ±25ppm 0°C ~ 70°C
C3291-12.288 Crystek晶振 C3291 XO (Standard) 12.288MHz ±25ppm 0°C ~ 70°C
C3291-12.352 Crystek晶振 C3291 XO (Standard) 12.352MHz ±25ppm 0°C ~ 70°C
C3291-14.318180 Crystek晶振 C3291 XO (Standard) 14.31818MHz ±25ppm 0°C ~ 70°C
C3291-15.360 Crystek晶振 C3291 XO (Standard) 15.36MHz ±25ppm 0°C ~ 70°C
C3291-16.000 Crystek晶振 C3291 XO (Standard) 16MHz ±25ppm 0°C ~ 70°C
C3291-16.384 Crystek晶振 C3291 XO (Standard) 16.384MHz ±25ppm 0°C ~ 70°C
C3291-18.432 瑞斯克晶振 C3291 XO (Standard) 18.432MHz ±25ppm 0°C ~ 70°C
C3291-19.440 Crystek晶振 C3291 XO (Standard) 19.44MHz ±25ppm 0°C ~ 70°C
C3291-2.048 Crystek晶振 C3291 XO (Standard) 2.048MHz ±25ppm 0°C ~ 70°C
C3291-20.000 Crystek晶振 C3291 XO (Standard) 20MHz ±25ppm 0°C ~ 70°C
C3291-20.480 Crystek晶振 C3291 XO (Standard) 20.48MHz ±25ppm 0°C ~ 70°C
C3291-24.000 Crystek晶振 C3291 XO (Standard) 24MHz ±25ppm 0°C ~ 70°C
C3291-24.704 Crystek晶振 C3291 XO (Standard) 24.704MHz ±25ppm 0°C ~ 70°C
C3291-25.000 Crystek晶振 C3291 XO (Standard) 25MHz ±25ppm 0°C ~ 70°C
C3291-3.686400 Crystek晶振 C3291 XO (Standard) 3.6864MHz ±25ppm 0°C ~ 70°C
C3291-30.000 Crystek晶振 C3291 XO (Standard) 30MHz ±25ppm 0°C ~ 70°C
C3291-32.000 Crystek晶振 C3291 XO (Standard) 32MHz ±25ppm 0°C ~ 70°C
C3291-32.768 Crystek晶振 C3291 XO (Standard) 32.768MHz ±25ppm 0°C ~ 70°C
C3291-33.000 Crystek晶振 C3291 XO (Standard) 33MHz ±25ppm 0°C ~ 70°C
C3291-33.333 Crystek晶振 C3291 XO (Standard) 33.333MHz ±25ppm 0°C ~ 70°C
C3291-35.000 Crystek晶振 C3291 XO (Standard) 35MHz ±25ppm 0°C ~ 70°C
C3291-4.000 Crystek晶振 C3291 XO (Standard) 4MHz ±25ppm 0°C ~ 70°C
C3291-40.000 Crystek晶振 C3291 XO (Standard) 40MHz ±25ppm 0°C ~ 70°C
C3291-44.736 Crystek晶振 C3291 XO (Standard) 44.736MHz ±25ppm 0°C ~ 70°C
C3291-45.000 Crystek晶振 C3291 XO (Standard) 45MHz ±25ppm 0°C ~ 70°C
C3291-49.152 Crystek晶振 C3291 XO (Standard) 49.152MHz ±25ppm 0°C ~ 70°C
C3291-50.000 Crystek晶振 C3291 XO (Standard) 50MHz ±25ppm 0°C ~ 70°C
C3291-51.840 Crystek晶振 C3291 XO (Standard) 51.84MHz ±25ppm 0°C ~ 70°C
C3291-6.176 Crystek晶振 C3291 XO (Standard) 6.176MHz ±25ppm 0°C ~ 70°C
C3291-7.372800 Crystek晶振 C3291 XO (Standard) 7.3728MHz ±25ppm 0°C ~ 70°C
C3291-8.000 Crystek晶振 C3291 XO (Standard) 8MHz ±25ppm 0°C ~ 70°C
CE3291-1.544 Crystek晶振 C3291 XO (Standard) 1.544MHz ±25ppm -40°C ~ 85°C
CE3291-1.843200 Crystek晶振 C3291 XO (Standard) 1.8432MHz ±25ppm -40°C ~ 85°C
CE3291-10.000 Crystek晶振 C3291 XO (Standard) 10MHz ±25ppm -40°C ~ 85°C
CE3291-12.000 Crystek晶振 C3291 XO (Standard) 12MHz ±25ppm -40°C ~ 85°C
CE3291-12.288 Crystek晶振 C3291 XO (Standard) 12.288MHz ±25ppm -40°C ~ 85°C
CE3291-12.352 Crystek晶振 C3291 XO (Standard) 12.352MHz ±25ppm -40°C ~ 85°C
CE3291-14.318180 Crystek晶振 C3291 XO (Standard) 14.31818MHz ±25ppm -40°C ~ 85°C
CE3291-15.360 Crystek晶振 C3291 XO (Standard) 15.36MHz ±25ppm -40°C ~ 85°C
CE3291-16.000 Crystek晶振 C3291 XO (Standard) 16MHz ±25ppm -40°C ~ 85°C
CE3291-16.384 Crystek晶振 C3291 XO (Standard) 16.384MHz ±25ppm -40°C ~ 85°C
CE3291-18.432 Crystek晶振 C3291 XO (Standard) 18.432MHz ±25ppm -40°C ~ 85°C
CE3291-19.440 Crystek晶振 C3291 XO (Standard) 19.44MHz ±25ppm -40°C ~ 85°C
CE3291-2.048 Crystek晶振 C3291 XO (Standard) 2.048MHz ±25ppm -40°C ~ 85°C
CE3291-20.000 Crystek晶振 C3291 XO (Standard) 20MHz ±25ppm -40°C ~ 85°C
CE3291-20.480 Crystek晶振 C3291 XO (Standard) 20.48MHz ±25ppm -40°C ~ 85°C
CE3291-24.000 Crystek晶振 C3291 XO (Standard) 24MHz ±25ppm -40°C ~ 85°C
CE3291-24.704 Crystek晶振 C3291 XO (Standard) 24.704MHz ±25ppm -40°C ~ 85°C
CE3291-25.000 Crystek晶振 C3291 XO (Standard) 25MHz ±25ppm -40°C ~ 85°C
CE3291-3.686400 Crystek晶振 C3291 XO (Standard) 3.6864MHz ±25ppm -40°C ~ 85°C
CE3291-30.000 Crystek晶振 C3291 XO (Standard) 30MHz ±25ppm -40°C ~ 85°C
CE3291-32.000 Crystek晶振 C3291 XO (Standard) 32MHz ±25ppm -40°C ~ 85°C
CE3291-32.768 Crystek晶振 C3291 XO (Standard) 32.768MHz ±25ppm -40°C ~ 85°C
CE3291-33.000 Crystek晶振 C3291 XO (Standard) 33MHz ±25ppm -40°C ~ 85°C
CE3291-33.333 Crystek晶振 C3291 XO (Standard) 33.333MHz ±25ppm -40°C ~ 85°C
CE3291-35.000 Crystek晶振 C3291 有源晶振 35MHz ±25ppm -40°C ~ 85°C
CE3291-4.000 Crystek晶振 C3291 XO (Standard) 4MHz ±25ppm -40°C ~ 85°C
CE3291-40.000 Crystek晶振 C3291 XO (Standard) 40MHz ±25ppm -40°C ~ 85°C
CE3291-6.176 Crystek晶振 C3291 XO (Standard) 6.176MHz ±25ppm -40°C ~ 85°C
CE3291-7.372800 Crystek晶振 C3291 XO (Standard) 7.3728MHz ±25ppm -40°C ~ 85°C
CE3291-8.000 Crystek晶振 C3291 XO (Standard) 8MHz ±25ppm -40°C ~ 85°C
C3291-60.000 Crystek晶振 C3291 XO (Standard) 60MHz ±25ppm 0°C ~ 70°C
C3291-64.000 Crystek晶振 C3291 XO (Standard) 64MHz ±25ppm 0°C ~ 70°C
C3291-66.666600 Crystek晶振 C3291 XO (Standard) 66.6666MHz ±25ppm 0°C ~ 70°C
CE3291-44.736 Crystek晶振 C3291 XO (Standard) 44.736MHz ±25ppm -40°C ~ 85°C
CE3291-45.000 Crystek晶振 C3291 XO (Standard) 45MHz ±25ppm -40°C ~ 85°C
CE3291-49.152 Crystek晶振 C3291 XO (Standard) 49.152MHz ±25ppm -40°C ~ 85°C
C3291-75.000 Crystek晶振 C3291 XO (Standard) 75MHz ±25ppm 0°C ~ 70°C
CE3291-50.000 Crystek晶振 C3291 XO (Standard) 50MHz ±25ppm -40°C ~ 85°C
CE3291-51.840 Crystek晶振 C3291 XO (Standard) 51.84MHz ±25ppm -40°C ~ 85°C
CE3291-60.000 Crystek晶振 C3291 XO (Standard) 60MHz ±25ppm -40°C ~ 85°C
CE3291-64.000 Crystek晶振 C3291 XO (Standard) 64MHz ±25ppm -40°C ~ 85°C
CE3291-66.666600 Crystek晶振 C3291 XO (Standard) 66.6666MHz ±25ppm -40°C ~ 85°C
CE3291-75.000 Crystek晶振 C3291 XO (Standard) 75MHz ±25ppm -40°C ~ 85°C
C3291-80.000 Crystek晶振 C3291 XO (Standard) 80MHz ±25ppm 0°C ~ 70°C
CE3291-80.000 Crystek晶振 C3291 XO (Standard) 80MHz ±25ppm -40°C ~ 85°C
C3291-100.000 Crystek晶振 C3291 XO (Standard) 100MHz ±25ppm 0°C ~ 70°C
C3291-106.250 Crystek晶振 C3291 XO (Standard) 106.25MHz ±25ppm 0°C ~ 70°C
CE3291-100.000 Crystek晶振 C3291 XO (Standard) 100MHz ±25ppm -40°C ~ 85°C
CE3291-106.250 Crystek晶振 C3291 XO (Standard) 106.25MHz ±25ppm -40°C ~ 85°C
数字视频专用HCMOS时钟振荡器CE3291-33.333,Crystek Corporation一直提供频率产品,包括石英晶体、XOs(时钟振荡器)、TCXOs(温度补偿晶体振荡器)、VCO(压控振荡器)和VCXOs(压控晶体振荡器),石英晶体振荡器。Crystek运营着两个致力于频率控制的部门。Crystek Crystal致力于开发和制造使用石英谐振器的频率产品。Crystek Microwave为微波行业开发频率控制和支持产品。其它产品包括:PLL(锁相环)频率合成器、RedBox VCOs、RF同轴电缆组件、RF电缆连接器、散装RF同轴电缆、RF功率检波器、滤波器、衰减器、DC模块、无源倍频器、RFPRO(袖珍参考振荡器)、连接器放大器、VCO评估板和看见基于时钟振荡器和VCO。

C32xx,C39xx -1
