C5S-12.000-18-1020-R,AKER石英晶振,6G无线通信晶振,5032贴片谐振器

C5S-12.000-18-1020-R采用5032贴片封装规格(5.0mm×3.2mm×1.2mm),在6G无线通信设备的高密度集成设计中展现出显著优势.相较于插件晶振,贴片封装无需穿孔焊接,可直接通过自动化SMT贴片工艺集成到6G基站,无线网关的高密度PCB板中,大幅节省电路空间,适配设备内部多模块(如多天线射频单元,基带处理板)的紧凑布局需求.同时,5032封装具备优异的机械稳定性,晶振与PCB板的连接强度高,在6G设备运输,安装及运行过程中,能有效抵御振动(10~500Hz,15g加速度)与冲击(500g,0.3ms),减少因外力导致的接触不良或元件损坏.此外,贴片封装支持大规模自动化生产,可提升6G设备的量产效率,降低人工焊接误差,保障批量生产时的产品一致性,为6G通信设备的快速落地提供支持.

JLXNR-2

JLX-2

C5S-12.000-18-1020-R,AKER石英晶振,6G无线通信晶振,5032贴片谐振器

原厂型号Original model ：	C5S-12.000-18-1020-R	品牌 brand ：	AKER晶振
品牌 brand ：	AKER晶振	ESR（等效串联电阻） Resistance)	35 Ohms
型号名称Model name：	C5S	温度 Operating Temperature	-10°C ~ 70°C
Type 系列：	MHz Crystal	脚位 Termination：	4 pad
频率frequency ：	12 MHz	封装类型 Package Type：	4-SMD
Frequency Stability频率稳定度	±20ppm	高度 Package Height：	1.0mm
frequency tolerance频率容差	±10ppm	最小包装数 MPQ ：	1000
Load capacitance负载电容	18pF	包装 Packaging：	Tape and Reel
Size / Dimension 尺寸	5.00mm x 3.20mm	安装方式 Mounting Style：	Surface Mount

JLXNR-3

JLX-3

C5S-12.000-18-1020-R,AKER石英晶振,6G无线通信晶振,5032贴片谐振器

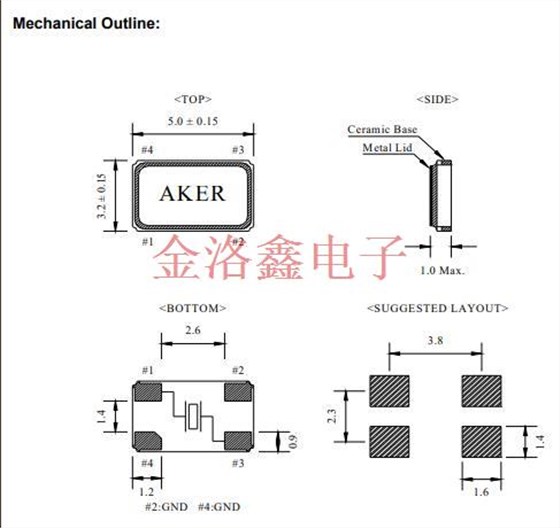

C5S尺寸图

JLXNR-4

C5S-12.000-18-1020-R,AKER石英晶振,6G无线通信晶振,5032贴片谐振器

C16-26.000-8-1520-R	AKER晶振	C16	MHz Crystal	26 MHz	±20ppm	±15ppm	8pF	120 Ohms
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF	25 Ohms
C5S-8.000-18-3030-R	AKER晶振	C5S	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF	150 Ohms
CAA-4.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	4 MHz	±50ppm	±30ppm	18pF	120 Ohms
CAA-11.0592-18-3050-R	AKER晶振	CAA	MHz Crystal	11.0592 MHz	±50ppm	±30ppm	18pF	50 Ohms
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF	60 Ohms
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF	80 Ohms
C3E-24.000-9-1010-R	AKER晶振	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	9pF	50 Ohms
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF	120 Ohms
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF	120 Ohms
C3E-25.000-20-1015-X-R	AKER晶振	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	20pF	40 Ohms
C3E-24.000-9-1015-X-R	AKER晶振	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	9pF	50 Ohms
C3E-16.000-9-1015-X-R	AKER晶振	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	9pF	60 Ohms
C2E-12.000-18-1020-R	AKER晶振	C2E	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	200 Ohms
C3E-8.000-20-1020-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	20pF	150 Ohms
C3E-8.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	500 Ohms
C3E-8.000-8-1015-R	AKER晶振	C3E	MHz Crystal	8 MHz	±10ppm	±15ppm	8pF	500 Ohms
C3E-12.000-8-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	8pF	80 Ohms
C3E-16.000-10-3050-X1-R	AKER晶振	C3E X1	MHz Crystal	16 MHz	±50ppm	±30ppm	10pF	60 Ohms
C16-32.000-8-1515-X-R	AKER晶振	C16	MHz Crystal	32 MHz	±15ppm	±15ppm	8pF	100 Ohms
C3E-20.000-8-3050-X1-R	AKER晶振	C3E X1	MHz Crystal	20 MHz	±50ppm	±30ppm	8pF	50 Ohms
C2E-12.000-18-1020-X-R	AKER晶振	C2E	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	200 Ohms
C5S-12.000-18-1020-R	AKER晶振	C5S	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	35 Ohms
C3E-8.000-18-1020-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	500 Ohms
C3E-8.000-12-1020-M	AKER晶振	C3E	MHz Crystal	8 MHz	±10ppm	±20ppm	12pF	500 Ohms
C2E-12.000-8-2050-X1-R	AKER晶振	C2E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	8pF	200 Ohms
C3E-16.000-10-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	10 MHz	±50ppm	±20ppm	10pF	60 Ohms
C3E-30.000-8-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	30 MHz	±50ppm	±20ppm	8pF	40 Ohms
C7S-12.000-12-3030-X-R	AKER晶振	C7S	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF	35 Ohms
C7S-8.000-18-1020-R	安基晶振	C7S	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	40 Ohms
C7S-8.000-18-1030-X-R	安基晶振	C7S	MHz Crystal	8 MHz	±30ppm	±10ppm	18pF	70 Ohms
CA4-16.000-18-3050-R	安基晶振	CA4	MHz Crystal	16 MHz	±50ppm	±30ppm	18pF	40 Ohms
CA4-8.000-16-3050-R	安基晶振	CA4	MHz Crystal	8 MHz	±50ppm	±30ppm	16pF	60 Ohms
C3E-8.000-10-1020-M	安基晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	10pF	500 Ohms
C16-96.000-8-1520-X2-R	安基晶振	-	MHz Crystal	96 MHz	±15ppm	±20ppm	8pF	-
C1E-76.800-10-1012-X-M	安基晶振	C1E	MHz Crystal	76.8 MHz	±10ppm	±10ppm	10pF	60 Ohms
C1E-80.000-10-1015-X-M	安基晶振	C1E	MHz Crystal	80 MHz	±10ppm	±10ppm	10pF	40 Ohms
C1E-76.800-8-1012-X-M	安基晶振	C1E	MHz Crystal	46.8 MHz	±10ppm	±10ppm	8pF	60 Ohms
C1E-80.000-8-1015-X-M	安基晶振	C1E	MHz Crystal	80 MHz	±10ppm	±10ppm	8pF	10 Ohms
C3E-24.576-12-3030-X-R	安基晶振	C3E	MHz Crystal	24.576 MHz	±30ppm	±30ppm	12pF	100 Ohms
C3E-30.000-12-1020-X-R	安基晶振	C3E	MHz Crystal	30 MHz	±10ppm	±20ppm	12pF	120 Ohms
C3E-12.000-12-1015-R	安基晶振	C3E	MHz Crystal	12 MHz	±15ppm	±10ppm	12pF	100 Ohms
C3E-25.000-8-1015-X-R	安基晶振	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF	100 Ohms
C3E-26.000-10-1015-X-R3	安基晶振	C3E	MHz Crystal	26 MHz	±15ppm	±10ppm	10pF	100 Ohms
C16-26.000-8-1010-R	安基晶振	C16	MHz Crystal	26 MHz	±10ppm	±10ppm	8pF	150 Ohms
C3E-16.000-8-2050-X1-R	安基晶振	C3E X1	MHz Crystal	16 MHz	±50ppm	±20ppm	8pF	60 Ohms
C3E-8.000-12-1020-R	安基晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	12pF	500 Ohms
C2E-12.000-10-2050-X1-R	安基晶振	C2E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	10pF	200 Ohms
C1E-96.000-8-1216-X2-R	安基晶振	C1E X2	MHz Crystal	96 MHz	±16ppm	±12ppm	8pF	20 Ohms
C3E-12.000-12-3030-X-R	安基晶振	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF	100 Ohms
C3E-27.120-12-1010-R	安基晶振	C3E	MHz Crystal	27.12 MHz	±10ppm	±10ppm	12pF	100 Ohms
C3E-24.576-12-1010-R	安基晶振	C3E	MHz Crystal	24.576 MHz	±10ppm	±10ppm	12pF	100 Ohms
C3E-16.000-12-1015-R	安基晶振	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF	100 Ohms
C3E-13.560-12-1530-X-R	安基晶振	C3E	MHz Crystal	13.56 MHz	±30ppm	±15ppm	12pF	100 Ohms
C2E-16.000-10-1010-R	安基晶振	C2E	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF	90 Ohms
C1E-24.000-10-1015-M	安基晶振	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF	100 Ohms
C2E-25.000-10-3030-X-M	安基晶振	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF	100 Ohms
C2E-48.000-10-1020-X-R	安基晶振	C2E	MHz Crystal	48 MHz	±20ppm	±10ppm	10pF	50 Ohms
C3E-20.000-10-3050-X1-R	安基晶振	C3E X1	MHz Crystal	20 MHz	±50ppm	±30ppm	10pF	50 Ohms
C1E-96.000-9.9-1216-X2-R	安基晶振	C1E	MHz Crystal	96 MHz	±16ppm	±12ppm	9.9pF	60 Ohms
