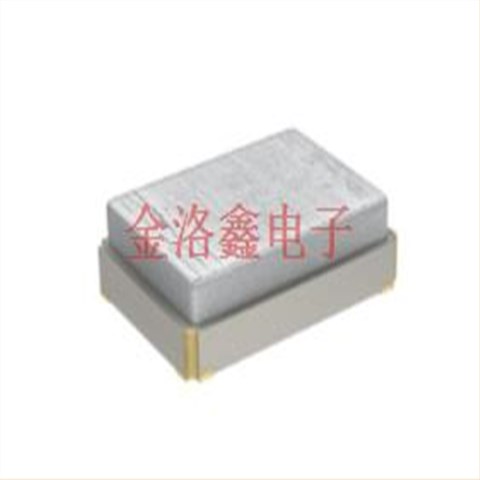

XRCMD48M000F1P2AR0,1612石英晶振,小型贴装晶振,日产晶振

该晶振采用行业主流的 1612 封装规格（即 1.6mm×1.2mm），在小型贴装晶振中属于超紧凑尺寸，具备显著的空间优势：相较于传统 2520、3225 封装晶振，其 PCB 板占用面积减少约 50% 以上，能轻松嵌入智能穿戴设备（如智能手环、蓝牙耳机）、微型 IoT 传感器、小型消费电子（如便携式血糖仪、迷你播放器）等空间极度受限的产品中；同时，1612 封装的轻薄特性（厚度通常仅 0.5mm 左右），可适配设备 “超薄化” 设计趋势，避免因元器件尺寸限制影响产品整体外观与便携性，为小型电子设备的形态创新提供支撑。

JLXNR-2

JLX-2

XRCMD48M000F1P2AR0,1612石英晶振,小型贴装晶振,日产晶振

原厂型号Originalmodel：	XRCMD48M000F1P2AR0	品牌brand：	Murata村田晶振
品牌brand：	Murata村田晶振	ESR（等效串联电阻）Resistance)	40 Ohms
型号名称Modelname：	XRCFD	温度OperatingTemperature	-40°C~85°C
Type系列：	MHz Crystal	脚位Termination：	4pad
频率frequency：	48 MHz	封装类型PackageType：	4-SMD
FrequencyStability频率稳定度	±20ppm	高度PackageHeight：	0.33mm
frequencytolerance频率容差	±10ppm	最小包装数MPQ：	3000
Loadcapacitance负载电容	7pF	包装Packaging：	TapeandReel

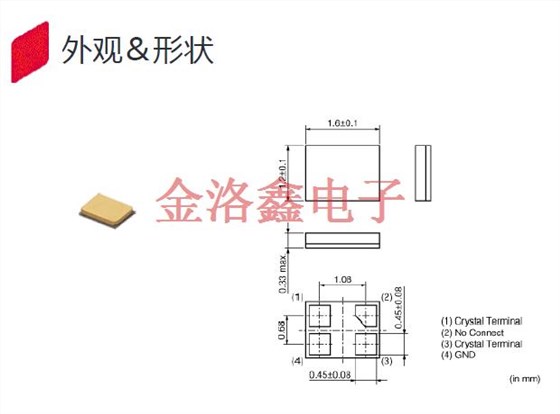

Size/Dimension尺寸	1.60mm x 1.20mm	安装方式MountingStyle：	SurfaceMount

JLXNR-3

JLX-3

XRCMD48M000F1P2AR0,1612石英晶振,小型贴装晶振,日产晶振

XRCMD48M000FXQ58R0 1.6-1.2

JLXNR-4

XRCMD48M000F1P2AR0,1612石英晶振,小型贴装晶振,日产晶振

XRCGB25M000F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F3M00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H01R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF	60 Ohms
XRCGB32M000F1H00R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF	60 Ohms
XRCGB25M000F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±35ppm	±35ppm	6pF	100 Ohms
XRCGB24M000F0L00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB48M000F4M00R0	Murata村田晶振	XRCGB	MHz Crystal	48 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB24M000F3N00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±30ppm	±30ppm	6pF	150 Ohms
XRCGB27M120F3M10R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±40ppm	±30ppm	10pF	80 Ohms
XRCGB25M000F3M18R0	Murata村田晶振	-	MHz Crystal	25 MHz	±40ppm	±30ppm	12pF	80 Ohms
XRCGB32M000F2P01R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	8pF	100 Ohms
XRCGB32M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB25M000F2P02R0	Murata村田晶振	-	MHz Crystal	25 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB27M120F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB25M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB24M000F2P01R0	Murata村田晶振	-	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF	150 Ohms
XRCGB27M120F3M13R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±40ppm	±30ppm	10pF	60 Ohms
XRCGB32M000F2P2CR0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	8pF	70 Ohms
XRCGB32M000FBH50R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±15ppm	10pF	60 Ohms
XRCGB24M000F2P91R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±20ppm	±20ppm	8pF	60 Ohms
XRCGB16M000FXN00R0	Murata村田晶振	-	MHz Crystal	16 MHz	±40ppm	±40ppm	6pF	200 Ohms
XRCGB32M000F1H02R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB32M000F1H19R0	Murata村田晶振	-	MHz Crystal	32 MHz	±10ppm	±10ppm	6pF	50 Ohms
XRCGB40M000F5A00R0	Murata村田晶振	-	MHz Crystal	40 MHz	±65ppm	±50ppm	6pF	70 Ohms
XRCGB24M000F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±35ppm	±30ppm	6pF	120 Ohms
XRCGB27M120F3A00R0	Murata村田晶振	XRCGB	MHz Crystal	27.12 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGB25M000F3A01R0	Murata村田晶振	XRCGB	MHz Crystal	25 MHz	±35ppm	±30ppm	8pF	100 Ohms
XRCGB48M000F5A00R0	Murata村田晶振	-	MHz Crystal	48 MHz	±65ppm	±50ppm	6pF	60 Ohms
XRCGE25M000FBA1AR0	Murata村田晶振	XRCFD	MHz Crystal	25 MHz	±35ppm	±15ppm	6pF	100 Ohms
XRCHA20M000F0A01R0	Murata村田晶振	XRCHA	MHz Crystal	20 MHz	±100ppm	±100ppm	8pF	80 Ohms
XRCGB27M120F0L00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±50ppm	±100ppm	6pF	150 Ohms
XRCGB32M000F0L00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±50ppm	±100ppm	6pF	100 Ohms
XRCGB24M000FAN00R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±25ppm	6pF	150 Ohms
XRCGB38M400F4M00R0	Murata村田晶振	-	MHz Crystal	38.4 MHz	±40ppm	±45ppm	6pF	100 Ohms
XRCGB50M000F4M00R0	Murata村田晶振	-	MHz Crystal	50 MHz	±40ppm	±45ppm	6pF	65 Ohms
XRCGB32M000F3M00R0	Murata村田晶振	-	MHz Crystal	32 MHz	±40ppm	±30ppm	6pF	100 Ohms
XRCGB24M000F3M13R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±40ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P02R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	10pF	100 Ohms
XRCGB30M000F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	30 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F2P02R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±20ppm	±20ppm	10pF	150 Ohms
XRCGB32M000F2P26R0	Murata村田晶振	-	MHz Crystal	32 MHz	±20ppm	±20ppm	5pF	70 Ohms
XRCGB31M250F2P00R0	Murata村田晶振	XRCGB	MHz Crystal	31.25 MHz	±20ppm	±20ppm	6pF	100 Ohms
XRCGB27M120F3G00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±50ppm	±30ppm	6pF	150 Ohms
XRCGB16M000FXN22R0	Murata村田晶振	XRCGB	MHz Crystal	16 MHz	±40ppm	±40ppm	8pF	200 Ohms
XRCGB27M600F2C00R0	Murata村田晶振	-	MHz Crystal	27.6 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCGB24M000F1H01R0	Murata村田晶振	-	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF	80 Ohms
XRCGB26M000F1H02R0	Murata村田晶振	-	MHz Crystal	26 MHz	±10ppm	±10ppm	10pF	60 Ohms
XRCGB24M000F1H70R0	Murata村田晶振	-	MHz Crystal	24 MHz	±20ppm	±10ppm	6pF	80 Ohms
XRCGB32M000F1H83R0	Murata村田晶振	-	MHz Crystal	32 MHz	±15ppm	±10ppm	9pF	60 Ohms
XRCGE27M000FBA1AR0	Murata村田晶振	XRCGE	MHz Crystal	27 MHz	±35ppm	±15ppm	6pF	80 Ohms
XRCGB26M000F3A00R0	Murata村田晶振	-	MHz Crystal	26 MHz	±35ppm	±30ppm	6pF	80 Ohms
XRCGE26M000FBA1BR0	Murata村田晶振	XRCGE	MHz Crystal	26 MHz	±35ppm	±15ppm	8pF	80 Ohms
XRCGE20M000F3A1AR0	Murata村田晶振	XRCFD	MHz Crystal	20 MHz	±45ppm	±30ppm	6pF	150 Ohms
XRCGB24M000F2A01R0	Murata村田晶振	XRCGB	MHz Crystal	24 MHz	±35ppm	±20ppm	8pF	120 Ohms
XRCGB27M120F3P00R0	Murata村田晶振	-	MHz Crystal	27.12 MHz	±20ppm	±30ppm	6pF	150 Ohms
XRCGB32M000F2P55R0	Murata村田晶振	XRCGB	MHz Crystal	32 MHz	±20ppm	±20ppm	6pF	80 Ohms
XRCPB26M000F2P00R0	Murata村田晶振	XRCPB	MHz Crystal	26 MHz	±20ppm	±20ppm	6pF	150 Ohms
XRCGB32M000F1H18R0	Murata村田晶振	XRCFD	MHz Crystal	32 MHz	±15ppm	±10ppm	9pF	40 Ohms
