Q 0.032768-JTX210-12.5-20-T1-LF-12.5PF-32.768KHz-2012mm
Δf = TC· (TA- TTP)2in [ppm]

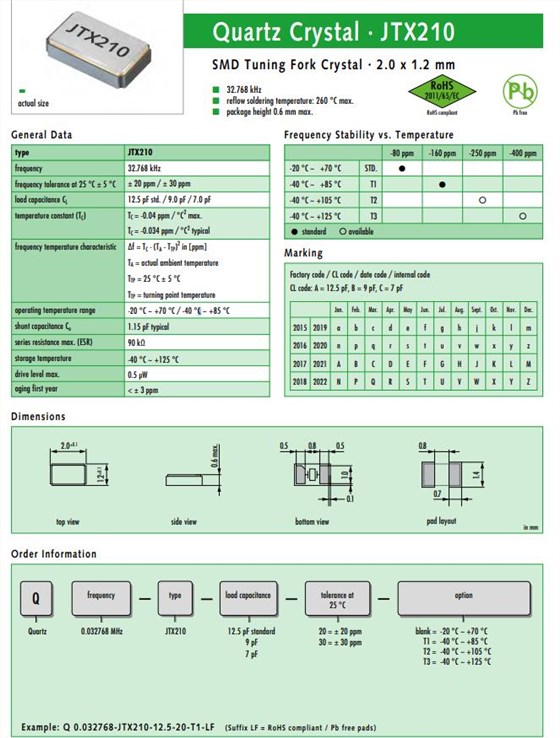

型号
JTX210
频率
32.768 kHz
频率公差 at 25 °C ± 5 °C
± 20 ppm
负载电容CL
12.5 pF
温度常数(TC)
频率温度特性Co
工作温度
-40 °C ~ +85 °C
并联电容 Co
1.15 pF typical
串联电阻最大值 (ESR)
90 kΩ
储存温度
-40 °C ~ +125 °C
最大驱动电平
0.5 µW
第一年老化
< ± 3 ppm
Q 0.032768-JTX210-12.5-20-T1-LF-12.5PF-32.768KHz-2012mm
| Jauch晶振原厂编码 | 制造商 | 型号 | 频率 | 频率容差 | 负载电容 | 工作温度 |
| Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX210-9-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C |
| Q 0.032768-JTX210-9-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C |
| Q 0.032768-JTX210-9-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C |
| Q 0.032768-JTX210-12.5-20-T3-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX210-12.5-20-T3-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX210-12.5-20-T3-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX210-9-20-T3-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C |
| Q 0.032768-JTX210-9-20-T3-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C |
| Q 0.032768-JTX210-9-20-T3-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C |
+
