NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf,NX1210AB-32MHZ-EXS00A-CS10192晶振,日本NDK晶振,1210mm,负载10pf,频率32MHz,超小型晶振,轻薄型晶振,工作温度-30~85°C,无线局域网晶振,蓝牙模块晶振,智能手机晶振,平板电脑晶振,通信设备晶振,智能音响晶振.
NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf 特点
超紧凑和薄的表面贴装型晶体单元
NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf参数表
规格参数
NX1210AB
频率
32MHz
振荡模式
Fundamental
频率公差(25 ±3 °C)
±10PPM
频率温度特性(with reference to +25 °C)
±15PPM
工作温度
-30°Cto+85°C
保存温度
-40°Cto+85°C
等效串联电阻(ESR)
100Ω
驱动电平
10μW
负载电容 (CL)
10pF
规格编号
STD-CIX-1

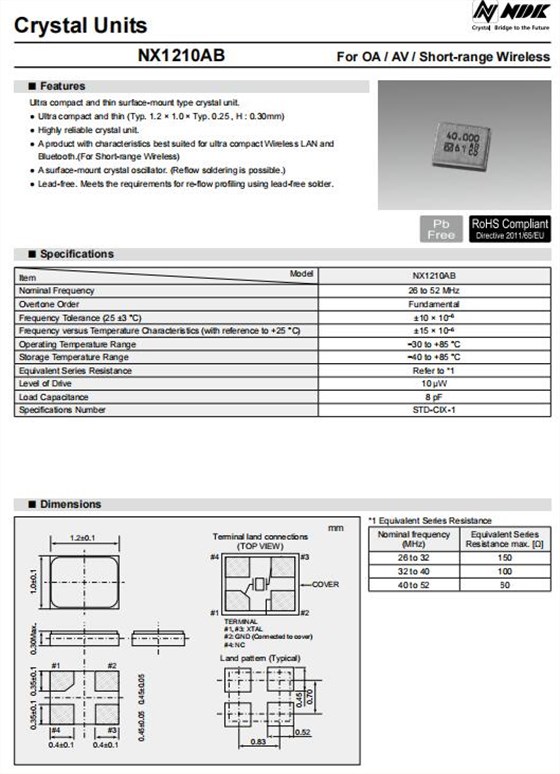

NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf尺寸图
| 原厂编码 | 生产厂家 | 型号 | 频率 | 频率稳定度 | 频率偏差 | 负载电容 | 工作温度 |
| NX1210AB-26MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 26MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-27MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 27MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-28MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 28MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-29MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 29MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-30MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 30MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-31MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 31MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-32MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 32MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-33MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 33MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-34MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 34MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-35MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 35MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-36MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 36MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-37MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 37MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-38MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 38MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-39MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 39MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-40MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 40MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-41MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 41MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-42MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 42MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-43MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 43MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-44MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 44MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-45MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 45MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-46MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 46MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-47MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 47MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-48MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 48MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-49MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 49MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-50MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 50MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-51MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 51MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-52MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 52MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| MNX1210AB-38.8HZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 38.8MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
