KT3225K26000DEU33T,智能穿戴设备晶振,3225无线通信模块晶振

原厂型号Original model ：	KT3225K26000DEU33T	品牌 brand ：	京瓷晶振
Manufacturer品牌	京瓷晶振	Operating Temperature温度	-20 ~ +75°C
Series型号	KT3225K	Current - Supply (Max)	-
Type 类型	TCXO	Package Height高度	0.8mm
Frequency 频率	26M	Termination脚位	4 pads
输出方式Output：	削峰正弦波	Package Type封装类型	4-SMD
Voltage - Supply电压	3.3V	Packaging包装	Tape and Reel
Frequency Stability频率稳定度	±2.0ppm	安装方式Installation ：	Surface mount
Size / Dimension 尺寸	3225mm	最小包装数 MPQ ：	3000

JLX-3

JLXNR-3

KT3225K26000DEU33T,智能穿戴设备晶振,3225无线通信模块晶振

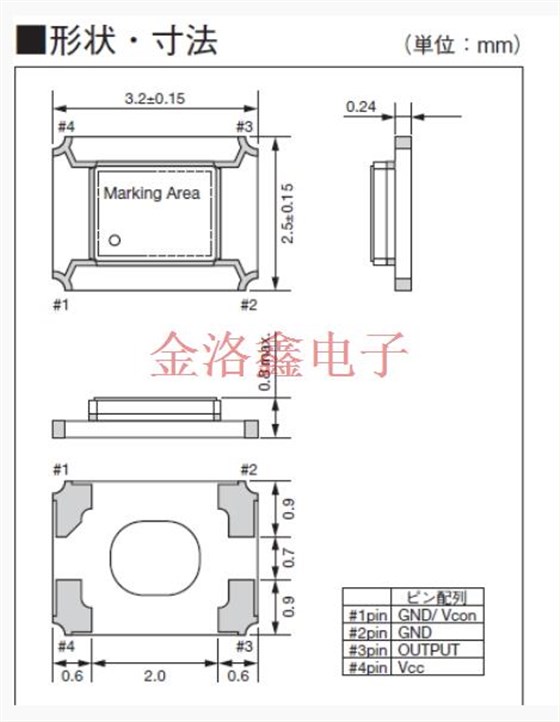

KT3225K

JLXNR-4

KT3225K26000DEU33T,智能穿戴设备晶振,3225无线通信模块晶振

KC2016K1.50000C10E00	2.0 x 1.6mm	0.8	1.5	-10	70	± 50	CMOS
KC2016K1.50000C16E00	2.0 x 1.6mm	0.8	1.5	-40	105	± 50	CMOS
KC2016K1.50000C1GE00	2.0 x 1.6mm	0.8	1.5	-40	85	± 50	CMOS
KC2016K1.50000C1SE00	2.0 x 1.6mm	0.8	1.5	-10	70	± 30	CMOS
KC2016K1.50000C1UE00	2.0 x 1.6mm	0.8	1.5	-10	70	± 25	CMOS
KC2016K1.84320C10E00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 50	CMOS
KC2016K1.84320C16E00	2.0 x 1.6mm	0.8	1.8432	-40	105	± 50	CMOS
KC2016K1.84320C1GE00	2.0 x 1.6mm	0.8	1.8432	-40	85	± 50	CMOS
KC2016K1.84320C1SE00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 30	CMOS
KC2016K1.84320C1UE00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 25	CMOS
KC2016K10.0000C10E00	2.0 x 1.6mm	0.8	10	-10	70	± 50	CMOS
KC2016K10.0000C16E00	2.0 x 1.6mm	0.8	10	-40	105	± 50	CMOS
KC2016K10.0000C1GE00	2.0 x 1.6mm	0.8	10	-40	85	± 50	CMOS
KC2016K10.0000C1SE00	2.0 x 1.6mm	0.8	10	-10	70	± 30	CMOS
KC2016K10.0000C1UE00	2.0 x 1.6mm	0.8	10	-10	70	± 25	CMOS
KC2016K10.2400C10E00	2.0 x 1.6mm	0.8	10.24	-10	70	± 50	CMOS
KC2016K10.2400C16E00	2.0 x 1.6mm	0.8	10.24	-40	105	± 50	CMOS
KC2016K10.2400C1GE00	2.0 x 1.6mm	0.8	10.24	-40	85	± 50	CMOS
KC2016K10.2400C1SE00	2.0 x 1.6mm	0.8	10.24	-10	70	± 30	CMOS
KC2016K10.2400C1UE00	2.0 x 1.6mm	0.8	10.24	-10	70	± 25	CMOS
KC2016K10.5554C10E00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 50	CMOS
KC2016K10.5554C16E00	2.0 x 1.6mm	0.8	10.5554	-40	105	± 50	CMOS
KC2016K10.5554C1GE00	2.0 x 1.6mm	0.8	10.5554	-40	85	± 50	CMOS
KC2016K10.5554C1SE00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 30	CMOS
KC2016K10.5554C1UE00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 25	CMOS
KC2016K100.000C10E00	2.0 x 1.6mm	0.8	100	-10	70	± 50	CMOS
KC2016K100.000C16E00	2.0 x 1.6mm	0.8	100	-40	105	± 50	CMOS
KC2016K100.000C1GE00	2.0 x 1.6mm	0.8	100	-40	85	± 50	CMOS
KC2016K100.000C1SE00	2.0 x 1.6mm	0.8	100	-10	70	± 30	CMOS
KC2016K100.000C1UE00	2.0 x 1.6mm	0.8	100	-10	70	± 25	CMOS
KC2016K11.2896C10E00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 50	CMOS
KC2016K11.2896C16E00	2.0 x 1.6mm	0.8	11.2896	-40	105	± 50	CMOS
KC2016K11.2896C1GE00	2.0 x 1.6mm	0.8	11.2896	-40	85	± 50	CMOS
KC2016K11.2896C1SE00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 30	CMOS
KC2016K11.2896C1UE00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 25	CMOS
KC2016K12.0000C10E00	2.0 x 1.6mm	0.8	12	-10	70	± 50	CMOS
KC2016K12.0000C16E00	2.0 x 1.6mm	0.8	12	-40	105	± 50	CMOS
KC2016K12.0000C1GE00	2.0 x 1.6mm	0.8	12	-40	85	± 50	CMOS
KC2016K12.0000C1SE00	2.0 x 1.6mm	0.8	12	-10	70	± 30	CMOS
KC2016K12.0000C1UE00	2.0 x 1.6mm	0.8	12	-10	70	± 25	CMOS
KC2016K12.2880C10E00	2.0 x 1.6mm	0.8	12.288	-10	70	± 50	CMOS
KC2016K12.2880C16E00	2.0 x 1.6mm	0.8	12.288	-40	105	± 50	CMOS
KC2016K12.2880C1GE00	2.0 x 1.6mm	0.8	12.288	-40	85	± 50	CMOS
KC2016K12.2880C1SE00	2.0 x 1.6mm	0.8	12.288	-10	70	± 30	CMOS
KC2016K12.2880C1UE00	2.0 x 1.6mm	0.8	12.288	-10	70	± 25	CMOS
KC2016K12.4560C10E00	2.0 x 1.6mm	0.8	12.456	-10	70	± 50	CMOS
KC2016K12.4560C16E00	2.0 x 1.6mm	0.8	12.456	-40	105	± 50	CMOS
KC2016K12.4560C1GE00	2.0 x 1.6mm	0.8	12.456	-40	85	± 50	CMOS
KC2016K12.4560C1SE00	2.0 x 1.6mm	0.8	12.456	-10	70	± 30	CMOS
KC2016K12.4560C1UE00	2.0 x 1.6mm	0.8	12.456	-10	70	± 25	CMOS
KC2016K12.5000C10E00	2.0 x 1.6mm	0.8	12.5	-10	70	± 50	CMOS
KC2016K12.5000C16E00	2.0 x 1.6mm	0.8	12.5	-40	105	± 50	CMOS
KC2016K12.5000C1GE00	2.0 x 1.6mm	0.8	12.5	-40	85	± 50	CMOS
KC2016K12.5000C1SE00	2.0 x 1.6mm	0.8	12.5	-10	70	± 30	CMOS
KC2016K12.5000C1UE00	2.0 x 1.6mm	0.8	12.5	-10	70	± 25	CMOS
KC2016K125.000C10E00	2.0 x 1.6mm	0.8	125	-10	70	± 50	CMOS
KC2016K125.000C16E00	2.0 x 1.6mm	0.8	125	-40	105	± 50	CMOS
KC2016K125.000C1GE00	2.0 x 1.6mm	0.8	125	-40	85	± 50	CMOS
KC2016K125.000C1SE00	2.0 x 1.6mm	0.8	125	-10	70	± 30	CMOS
KC2016K125.000C1UE00	2.0 x 1.6mm	0.8	125	-10	70	± 25	CMOS
