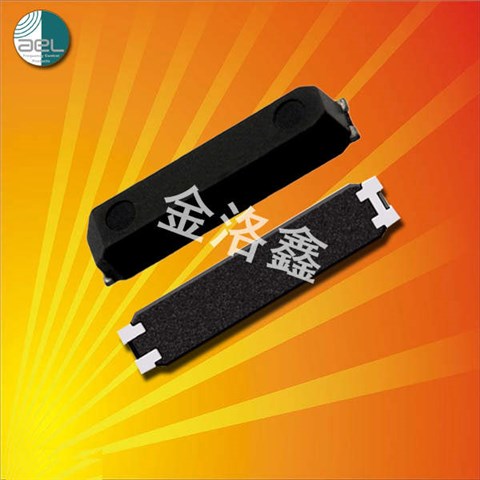

ELS13-32.768kHz-T,AEL石英晶体,仪表设备晶振,7015mm谐振器，英国进口晶振，AEL艾尔晶振，型号：ELS13系列，编码为：ELS13-32.768kHz-T，负载电容：12.5pF，频率公差：±20ppm，频率：32.768KHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x1.5x1.4mm封装，四脚贴片晶振，7.0*1.5晶振，石英晶振，无源晶振，陶瓷晶振，SMD音叉晶体，石英晶体谐振器，具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境特点，应用于：通讯设备晶振，仪表设备晶振，数字电子晶振，电视机晶振等应用。

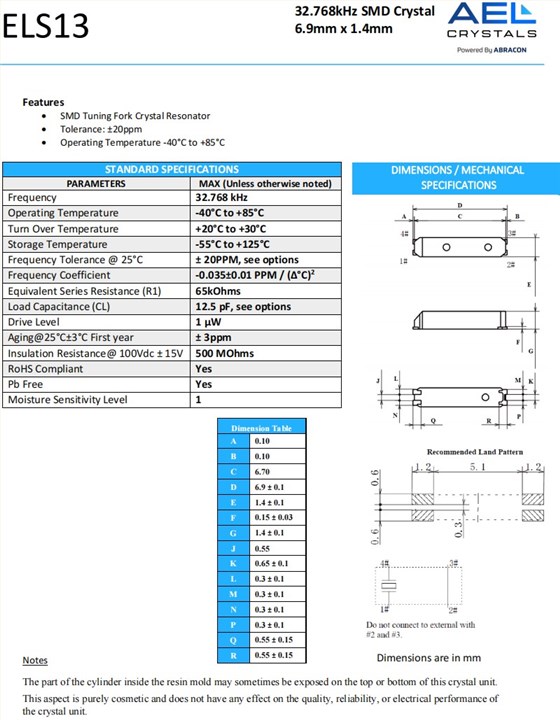

ELS13-32.768kHz-T,AEL石英晶体,仪表设备晶振,7015mm谐振器,参数表
PARAMETERS
MAX (Unless otherwise noted)
Frequency
32.768 kHz
Operating Temperature
-40°C to +85°C
Turn Over Temperature
+20°C to +30°C
Storage Temperature
-55°C to +125°C
Frequency Tolerance @ 25°C
± 20PPM, see options
Frequency Coefficient
-0.035±0.01 PPM / (?°C)2
Equivalent Series Resistance (R1)
65kOhms
Load Capacitance (CL)
12.5 pF, see options
Drive Level
1 μW
Aging@25°C±3°C First year
± 3ppm
Insulation Resistance@ 100Vdc ± 15V
500 MOhms
RoHS Compliant
Yes
Pb Free
Yes
Moisture Sensitivity Level
1
