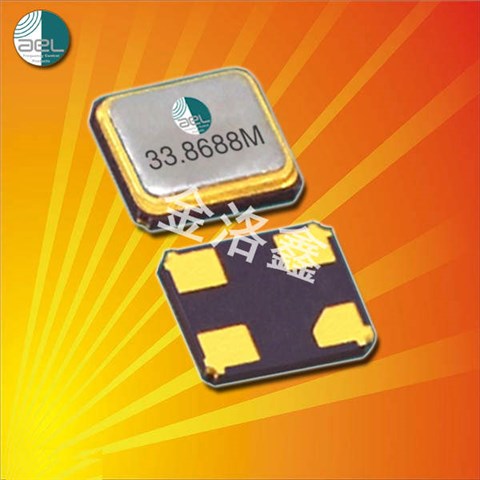

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf,ELM12W-38.000MHz-6-R120-D7X-T晶振,1612mm晶振,频率38MHz,负载6pf,超小型晶振,AEL进口晶振,小型通信设备晶振,无线网络晶振,智能穿戴设备晶振,物联网晶振.

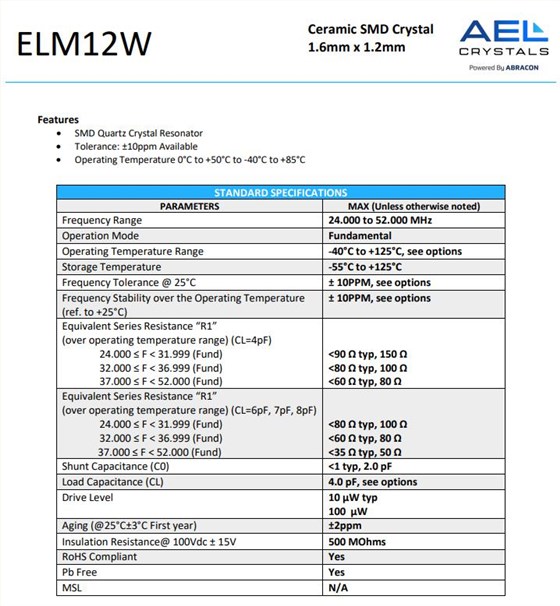

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf参数表
| 规格参数 | MAX(除非有特殊说明) | |||||||
| 频率 | 38MHz | |||||||
| 操作方式 | Fundamental | |||||||
| 工作温度 | -40Cto+85°C | |||||||
| 保存温度 | -55°Cto+125°C | |||||||
| 频率公差 @ 25°C | ±15PPM | |||||||
| 频率稳定性(ref. to +25°C) |
±20PPM |
|||||||
| 等效串联电阻(ESR) | 80Ω | |||||||
| 并联电容(C0) | 2.0pF | |||||||
| 负载电容 (CL) | 6pF | |||||||
| 激励功率 |
10μWTyp 100μW |
|||||||
| 老化性(@25°C±3°C First year) | ±2ppm | |||||||
| 绝缘电阻@ 100Vdc ± 15V | 500MOhms | |||||||
| 通过无铅认证 | Yes | |||||||
| 无铅 | Yes | |||||||
| MSL | N/A | |||||||

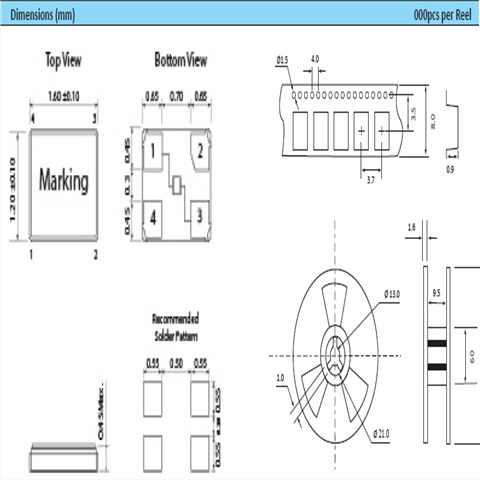

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf尺寸图
| AEL原厂编码 | 品牌 | 型号 | 工作温度 | 频率 | 频率稳定度 | 频率公差 | 负载 |
| ELM12W-25.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-26.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 26 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-27.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 27 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-28.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 28 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-29.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 29 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-30.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 30 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-31.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 31 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-32.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 32 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-33.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 33 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-34.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 34 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-35.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 35 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-36.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 36 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-37.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 37 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-38.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 38 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-39.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 39 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-40.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 40 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-41.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 41 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 24 MHz | ±20ppm | ±15ppm | 6 pF |
