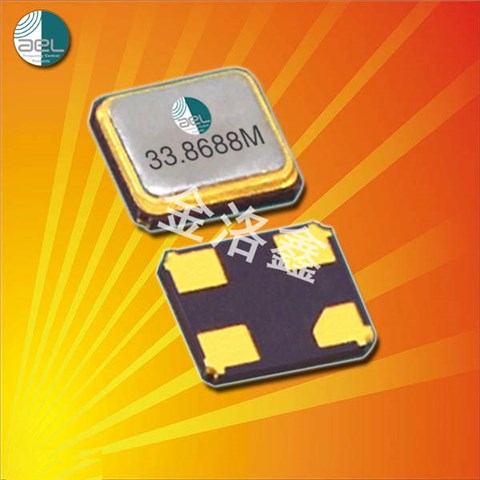

ELM10-16.000MHz-8-R60-2-D20-T,英国AEL石英晶振,2520mm,16MHz

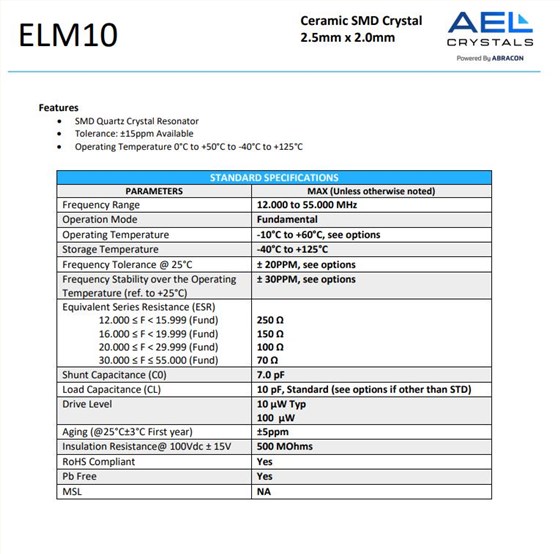

| 规格参数 | MAX(除非有特殊说明) | |||||||
| 频率 | 16 MHz | |||||||
| 操作方式 | Fundamental | |||||||
| 工作温度 | -40Cto+85°C | |||||||
| 保存温度 | -40°Cto+125°C | |||||||
| 频率公差 @ 25°C | ±20PPM | |||||||
| 频率稳定性(ref. to +25°C) |
±20PPM
|
|||||||
| 等效串联电阻(ESR) | 150Ω | |||||||
| 并联电容(C0) | 7.0pF | |||||||
| 负载电容 (CL) | 8pF | |||||||
| 激励功率 |
10 μWTyp 100μW |
|||||||
| 老化性(@25°C±3°C First year) | ±5ppm | |||||||
| 绝缘电阻@ 100Vdc ± 15V | 500MOhms | |||||||
| 通过无铅认证 | Yes | |||||||
| 无铅 | Yes | |||||||
| MSL | N/A | |||||||
ELM10-16.000MHz-8-R60-2-D20-T,英国AEL石英晶振,2520mm,16MHz
| AEL原厂编码 | 品牌 | 型号 | 工作温度 | 频率 | 频率稳定度 | 频率公差 | 负载 |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | ELM10 | -40°C ~ 85°C | 16 MHz | ±20ppm | ±20ppm | 8 pF |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 24 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-18.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 18MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-25.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 25 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-26.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 26 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-27.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 27 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-28.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 28 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-29.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 29 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-30.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 30 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-31.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 31 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-32.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 32 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-33.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 33 MHz | ±15ppm | ±10ppm | 16 pF |
| ELM10-34.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | -30°C ~ 85°C | 34 MHz | ±15ppm | ±10ppm | 16 pF |
