CPFBZ-A2C4-32.768KD6,-40~85°C,卡迪纳尔进口晶振,32.768KHz

产品简介

CPFBZ-A2C4-32.768KD6,-40~85°C,卡迪纳尔进口晶振,32.768KHz,CPFBZ-A2C4-32.768KD6晶振,工作温度-40~85°C,卡迪纳尔进口晶振,32.768KHz晶振,负载6pf,精度10ppm,环保晶振,耐高温晶振,石英SMD晶振,欧美无源晶振,实时时钟晶振,测试测量设备晶振,通信设备晶振,智能电表晶振,家电影音系统晶振.

产品详情

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

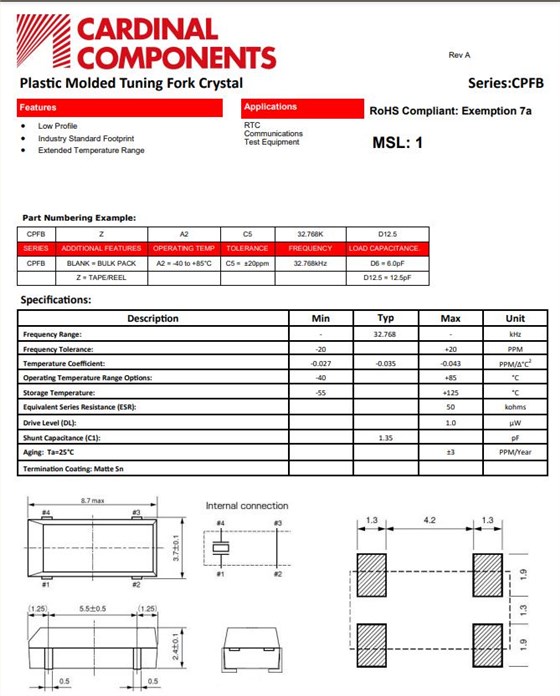

CPFBZ-A2C4-32.768KD6,-40~85°C,卡迪纳尔进口晶振,32.768KHz 参数

项目	符号	CPFB
频率	f0	32.768KHz
频率公差	△f/f0	±20ppm
温度系数	TC	-0.035typ PPM/Δ°C2
负载电容	CL	6pf
工作温度	TOPR	－40℃～＋85℃
保存温度	TSTR	－55℃～＋125℃
串联阻力	R1	50KΩ Max.
驱动级别	DL	1μW Max
并联电容	C1	1.35pf
老化（第一年）	△f/f0	±3ppm Max.

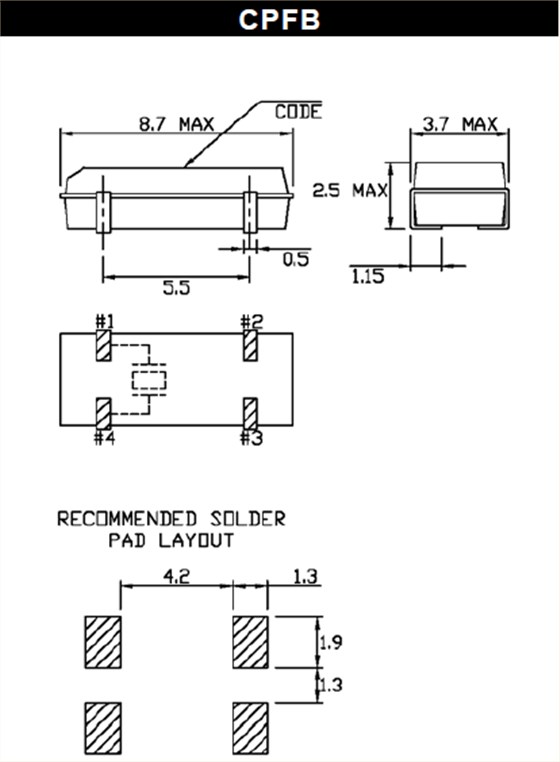

CPFBZ-A2C4-32.768KD6,-40~85°C,卡迪纳尔进口晶振,32.768KHz尺寸图

原厂编码	生产厂家	型号	频率	负载	频率稳定度	ESR 电阻	工作温度
CPFBZ-A2C4-32.768KD6	Cardinal晶振	CPFB	32.768kHz	6pf	10ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C4-32.768KD6	Cardinal晶振	CPFB	32.768kHz	6pf	10ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C4-32.768KD6	Cardinal晶振	CPFB	32.768kHz	6pf	10ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C5-32.768KD6	Cardinal晶振	CPFB	32.768kHz	6pf	20ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C5-32.768KD6	Cardinal晶振	CPFB	32.768kHz	6pf	20ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C5-32.768KD6	Cardinal晶振	CPFB	32.768kHz	6pf	20ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C4-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	12.5pf	10ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C4-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	12.5pf	10ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C4-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	12.5pf	10ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C5-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	12.5pf	20ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C5-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	12.5pf	20ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C5-32.768KD12.5	Cardinal晶振	CPFB	32.768kHz	12.5pf	20ppm	50 kOhm	-40°C ~ 85°C
CPFBZ-A2C5-32.768D6	Cardinal晶振	CPFB	32.768kHz	6pf	20ppm	50 kOhm	-40°C ~ 85°C
