407F35E036M0000~美国CTS晶振~7050mm~36MHz

407F35E036M0000~美国CTS晶振~7050mm~36MHz,407石英贴片晶振,407F35E036M0000晶振,美国CTS晶振,7050mm晶振,频率36MHz,无源晶振,工作温度-20~70°C,负载20pf,无线通讯设备晶振,宽带接入晶振,WIFI晶振,测试和测量仪器晶振,手持式设备晶振,计算机外围设备晶振.

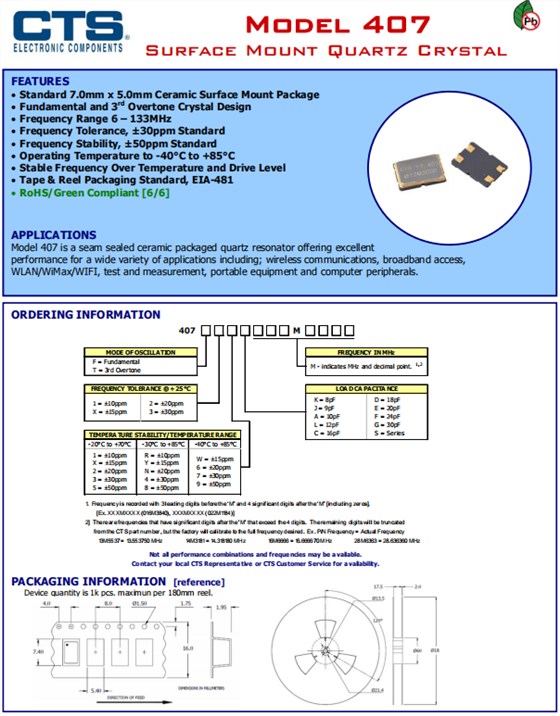

407F35E036M0000~美国CTS晶振~7050mm~36MHz 特征

1.标准7.0mm x 5.0mm陶瓷表面贴装封装基本晶体设计

2.频率范围6 - 133MHz频率公差±30ppm标准频率稳定性±50ppm标准工作温度-40℃~ +85℃

3.稳定的频率过温和驱动电平胶带和卷轴包装标准, EIA-481符合RoHS/绿色标准

4.407型是一种接缝密封陶瓷封装石英谐振器,具有优异的性能,性能广泛的应用,包括;无线通信、宽带接入、WLAN/WiMax/WIFI，测试和测量，便携式设备和计算机外围设备.

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

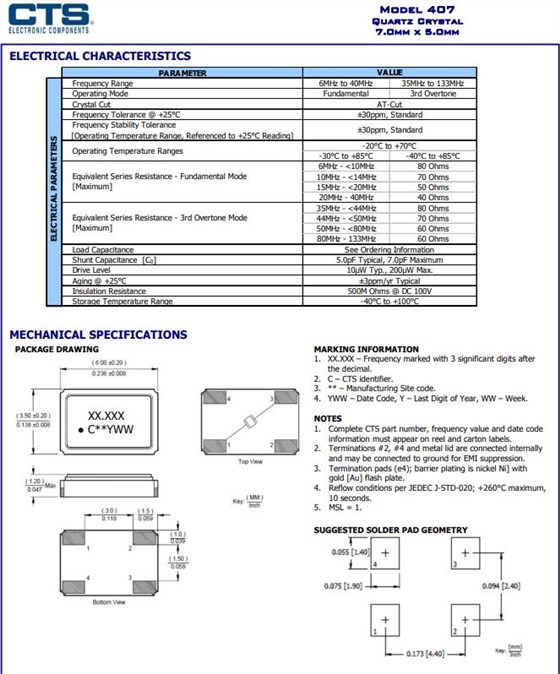

407F35E036M0000~美国CTS晶振~7050mm~36MHz 参数

项目			数值
频率			36MHz
操作模式			Fundamental
晶体切割			AT-Cut
工作温度			-20°Cto+70°C
保存温度			-40°Cto+100°C
频率公差@ +25°C			±30PPM
工作温度范围内的频率稳定性( ref. to +25°C)			±50PPM
等效串联电阻(R1)			40Ω
并联电容(C0)			5.0pF Typical, 7.0pF Maximum
负载电容 (CL)			20pF
激励功率			200μW Max
老化@ +25°C			±3ppm/yr Typical
绝缘电阻			500M Ohms @ DC 100V

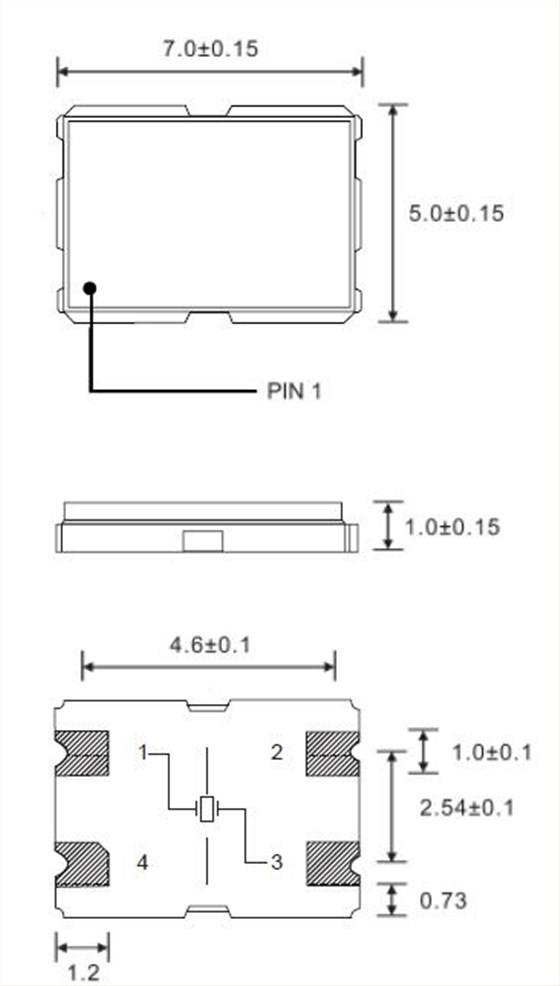

407F35E036M0000~美国CTS晶振~7050mm~36MHz 尺寸图

原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	ESR电阻	工作温度
407F35E022M1184	CTS 晶振	407	22.1184MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E029M4912	CTS 晶振	407	29.4912MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E016M3840	CTS 晶振	407	16.384MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E009M6000	CTS 晶振	407	9.6MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F39E008M0000	CTS 晶振	407	8MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407T35E050M0000	CTS 晶振	407	50MHz	±50ppm	±30ppm	20pF	100 Ohm	-20°C ~ 70°C
407F35E036M0000	CTS 晶振	407	36MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E012M5000	CTS 晶振	407	12.5MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E016M6700	CTS 晶振	407	16.67MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35D007M3728	CTS晶振	407	7.3728MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
407F35D008M0000	CTS晶振	407	8MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D009M6000	CTS晶振	407	9.6MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D010M0000	CTS晶振	407	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D011M0592	CTS晶振	407	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D012M0000	CTS晶振	407	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D012M5000	CTS晶振	407	12.5MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D014M3181	CTS晶振	407	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D014M7456	CTS晶振	407	14.7456MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
407F35D016M0000	CTS晶振	407	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D016M3840	CTS晶振	407	16.384MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D016M6700	CTS晶振	407	16.67MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D016M9344	CTS晶振	407	16.9344MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D018M4320	CTS晶振	407	18.432MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D019M6800	CTS晶振	407	19.68MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D020M0000	CTS晶振	407	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D022M1184	CTS晶振	407	22.1184MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D024M0000	CTS晶振	407	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D024M5760	CTS晶振	407	24.576MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D025M0000	CTS晶振	407	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D027M0000	CTS晶振	407	27MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D029M4912	CTS晶振	407	29.4912MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D032M0000	CTS晶振	407	32MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35D036M0000	CTS晶振	407	36MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407F35E007M3728	CTS晶振	407	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
407F35E011M0592	CTS晶振	407	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E014M3181	CTS晶振	407	14.31818MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E016M9344	CTS晶振	407	16.9344MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E018M4320	CTS晶振	407	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E019M6800	CTS晶振	407	19.68MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E020M0000	CTS晶振	407	20MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E024M0000	CTS晶振	407	24MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E024M5760	CTS晶振	407	24.576MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E027M0000	CTS晶振	407	27MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E032M0000	CTS晶振	407	32MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F39D007M3728	CTS晶振	407	7.3728MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
407F39D008M0000	CTS晶振	407	8MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D009M6000	CTS晶振	407	9.6MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D010M0000	CTS晶振	407	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D011M0592	CTS晶振	407	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D012M0000	CTS晶振	407	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D012M5000	CTS晶振	407	12.5MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D014M3181	CTS晶振	407	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D014M7456	CTS晶振	407	14.7456MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F39D016M0000	CTS晶振	407	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D016M3840	CTS晶振	407	16.384MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D016M6700	CTS晶振	407	16.67MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D016M9344	CTS晶振	407	16.9344MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D018M4320	CTS晶振	407	18.432MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D019M6800	CTS晶振	407	19.68MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D020M0000	CTS晶振	407	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D022M1184	CTS晶振	407	22.1184MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D024M0000	CTS晶振	407	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D024M5760	CTS晶振	407	24.576MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D025M0000	CTS晶振	407	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D027M0000	CTS晶振	407	27MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D029M4912	CTS晶振	407	29.4912MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D032M0000	CTS晶振	407	32MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39D036M0000	CTS晶振	407	36MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39E007M3728	CTS晶振	407	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
407F39E009M6000	CTS晶振	407	9.6MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E010M0000	CTS晶振	407	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E011M0592	CTS晶振	407	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E012M0000	CTS晶振	407	12MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E012M5000	CTS晶振	407	12.5MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E014M3181	CTS晶振	407	14.31818MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E014M7456	CTS晶振	407	14.7456MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
407F39E016M0000	CTS晶振	407	16MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E016M3840	CTS晶振	407	16.384MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E016M6700	CTS晶振	407	16.67MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E016M9344	CTS晶振	407	16.9344MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E018M4320	CTS晶振	407	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E019M6800	CTS晶振	407	19.68MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E020M0000	CTS晶振	407	20MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E022M1184	CTS晶振	407	22.1184MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E024M0000	CTS晶振	407	24MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E024M5760	CTS晶振	407	24.576MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E025M0000	CTS晶振	407	25MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E027M0000	CTS晶振	407	27MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E029M4912	CTS晶振	407	29.4912MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E032M0000	CTS晶振	407	32MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F39E036M0000	CTS晶振	407	36MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407F35E008M0000	CTS晶振	407	8MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E010M0000	CTS晶振	407	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E012M0000	CTS晶振	407	12MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E014M7456	CTS晶振	407	14.7456MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
407F35E016M0000	CTS晶振	407	16MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E025M0000	CTS晶振	407	25MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F37D008M0000	CTS晶振	407	8MHz	±30ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
407F35E044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35E044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
407F35D044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
407T35D050M0000	CTS晶振	407	50MHz	±50ppm	±30ppm	18pF	100 Ohm	-20°C ~ 70°C
407F39D044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
407F39E044M7360	CTS晶振	407	44.736MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
407T39D050M0000	CTS晶振	407	50MHz	±50ppm	±30ppm	18pF	100 Ohm	-40°C ~ 85°C
407T39E050M0000	CTS晶振	407	50MHz	±50ppm	±30ppm	20pF	100 Ohm	-40°C ~ 85°C
