X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振

X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振，台湾加高晶振公司，HELE晶振，6G无线应用晶振，HSX221SA晶振，进口晶振，2520晶振，X2B016000BZ1H-V晶振,耐热性晶振，高稳定性晶振，6G无线应用晶振，射频应用晶振，物料网应用晶振，RFID应用晶振.特点 :微型超薄贴片产品尺寸（2.5×2.0× 0.5 max)精度高，可靠性好，耐热性好射频应用、无线模块设备、RFID应用和其他消费类产品的最佳解决方案

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振

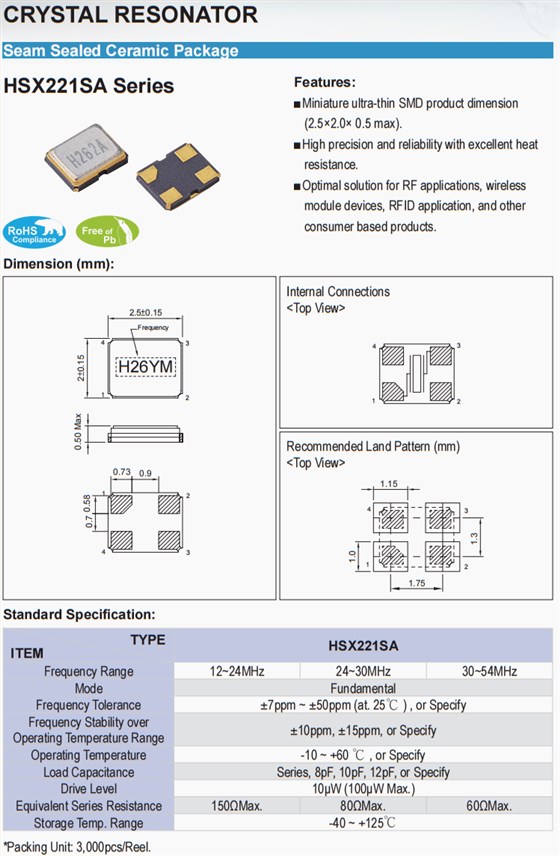

项目	HSX221SA
频率范围	12~24MHz	24~30MHz	30~54MHz
工作模式	Fundamental
频率容差	±7ppm ~ ±50ppm (at. 25℃) , or Specify
温度范围内的频率稳定度	±10ppm, ±15ppm, or Specify
工作温度	-10 ~ +60℃, or Specify
负载电荷	Series, 8pF, 10pF, 12pF, or Specify
驱动电平	10μW (100μW Max.)
等效串联电阻	150ΩMax.	80ΩMax.	60ΩMax.
储存温度范围	‘-40 ~ +125℃

X2B016000BZ1H-V晶振,加高台产石英晶体,航空航天晶振

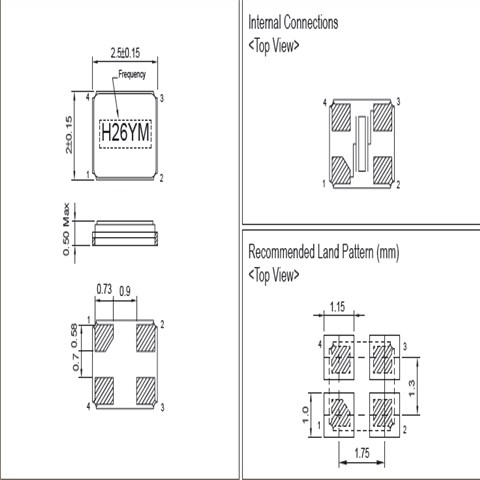

HSX221SA 2520

HSX221SA

原厂编码	制造厂家	型号	频率	负载	频率容差	频率稳定性	工作温度	尺寸
X2B02863ADC1H-W	HELE晶振	HSX221SA	28.636360MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B010000ADC1H-W	HELE晶振	HSX221SA	10MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B011000ADC1H-W	HELE晶振	HSX221SA	11MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B012000ADC1H-W	HELE晶振	HSX221SA	12MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B013000ADC1H-W	HELE晶振	HSX221SA	13MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B014000ADC1H-W	HELE晶振	HSX221SA	14MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B015000ADC1H-W	HELE晶振	HSX221SA	15MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B016000ADC1H-W	HELE晶振	HSX221SA	16MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B017000ADC1H-W	HELE晶振	HSX221SA	17MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B018000ADC1H-W	HELE晶振	HSX221SA	18MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B019000ADC1H-W	HELE晶振	HSX221SA	19MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B020000ADC1H-W	HELE晶振	HSX221SA	20MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B021000ADC1H-W	HELE晶振	HSX221SA	21MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B022000ADC1H-W	HELE晶振	HSX221SA	22MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B023000ADC1H-W	HELE晶振	HSX221SA	23MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B024000ADC1H-W	HELE晶振	HSX221SA	24MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B025000ADC1H-W	HELE晶振	HSX221SA	25MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B026000ADC1H-W	HELE晶振	HSX221SA	26MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B027000ADC1H-W	HELE晶振	HSX221SA	27MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B028000ADC1H-W	HELE晶振	HSX221SA	28MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B029000ADC1H-W	HELE晶振	HSX221SA	29MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B030000ADC1H-W	HELE晶振	HSX221SA	30MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B031000ADC1H-W	HELE晶振	HSX221SA	31MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B032000ADC1H-W	HELE晶振	HSX221SA	32MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B033000ADC1H-W	HELE晶振	HSX221SA	33MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B034000ADC1H-W	HELE晶振	HSX221SA	34MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B035000ADC1H-W	HELE晶振	HSX221SA	35MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B036000ADC1H-W	HELE晶振	HSX221SA	36MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B037000ADC1H-W	HELE晶振	HSX221SA	37MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B038000ADC1H-W	HELE晶振	HSX221SA	38MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B039000ADC1H-W	HELE晶振	HSX221SA	39MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B040000ADC1H-W	HELE晶振	HSX221SA	40MHz	12pF	±20PPM	±20PPM	-20~70°C	2.5×2.0mm
X2B038400BA1H-U	HELE晶振	HSX221SA	38.4MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B016000BA1H-U	HELE晶振	HSX221SA	16MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B017000BA1H-U	HELE晶振	HSX221SA	17MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B018000BA1H-U	HELE晶振	HSX221SA	18MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B019000BA1H-U	HELE晶振	HSX221SA	19MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B020000BA1H-U	HELE晶振	HSX221SA	20MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B021000BA1H-U	HELE晶振	HSX221SA	21MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B022000BA1H-U	HELE晶振	HSX221SA	22MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B023000BA1H-U	HELE晶振	HSX221SA	23MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B024000BA1H-U	HELE晶振	HSX221SA	24MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B025000BA1H-U	HELE晶振	HSX221SA	25MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B026000BA1H-U	HELE晶振	HSX221SA	26MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B027000BA1H-U	HELE晶振	HSX221SA	27MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B028000BA1H-U	HELE晶振	HSX221SA	28MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B029000BA1H-U	HELE晶振	HSX221SA	29MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B030000BA1H-U	HELE晶振	HSX221SA	30MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B031000BA1H-U	HELE晶振	HSX221SA	31MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B032000BA1H-U	HELE晶振	HSX221SA	32MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B033000BA1H-U	HELE晶振	HSX221SA	33MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B034000BA1H-U	HELE晶振	HSX221SA	34MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B035000BA1H-U	HELE晶振	HSX221SA	35MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B036000BA1H-U	HELE晶振	HSX221SA	36MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B037000BA1H-U	HELE晶振	HSX221SA	37MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B038000BA1H-U	HELE晶振	HSX221SA	38MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B039000BA1H-U	HELE晶振	HSX221SA	39MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B040000BA1H-U	HELE晶振	HSX221SA	40MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B041000BA1H-U	HELE晶振	HSX221SA	41MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B042000BA1H-U	HELE晶振	HSX221SA	42MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B043000BA1H-U	HELE晶振	HSX221SA	43MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B044000BA1H-U	HELE晶振	HSX221SA	44MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B045000BA1H-U	HELE晶振	HSX221SA	45MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
X2B046000BA1H-U	HELE晶振	HSX221SA	46MHz	10pF	±10PPM	±10PPM	-20~70°C	2.5×2.0mm
